High-Efficiency and Durable Glazed Tile Roll Forming Machine: Creating Aesthetic and Long-Lasting Roofing Solutions

Author: Site Editor     Publish Time: 2025-01-22      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

    In modern construction, glazed tiles are highly favored for their elegant appearance and exceptional durability. To meet the growing demand for high-quality roofing materials, the Glazed Tile Roll Forming Machine has been developed. This advanced equipment is specifically designed for producing glazed tile sheets and is widely used in industrial buildings, residential constructions, warehouses, and other large-span roofing projects.

1. Working Principle of the Glazed Tile Roll Forming Machine

The glazed tile roll forming machine adopts cold roll forming technology, where a series of precision-engineered rollers gradually shape the metal sheets. The process includes punching steps to create the signature tile design, followed by cutting to the desired length. With a high level of automation, the machine significantly improves production efficiency while ensuring consistent product quality.

2. Key Features and Technical Specifications

  1. Processing Materials

    • Suitable for galvanized steel coils, color-coated steel coils, stainless steel sheets, etc., with a typical thickness range of 0.3mm to 0.6mm.

    • Customizable materials are available to meet different roofing construction requirements under various environmental conditions.

  2. Core Components

    • Feeding Device: Ensures smooth and even material feeding into the machine.

    • Transmission System: Equipped with a high-efficiency motor and chain drive for stable operation.

    • Main Machine with Rollers: The key component, consisting of precision rollers that gradually shape the metal sheet into the desired tile profile.

    • Punching Unit: Creates the characteristic step design of glazed tiles, enhancing both aesthetics and water drainage.

    • Cutting Unit: Automatically cuts the tiles to pre-set lengths, ensuring uniform product quality.

  3. Production Speed

    • Standard production speeds range from 2 to 10 meters per minute, adjustable based on machine configuration and process requirements.

    • High automation ensures efficient mass production, significantly boosting productivity.

  4. Product Characteristics

    • The produced glazed tile sheets are long-span and seamless, offering excellent waterproof performance.

    • Customizable in various shapes, colors, and thicknesses, catering to diverse architectural styles.

    • The surface is smooth and aesthetically pleasing, featuring high corrosion resistance and strong weatherability, with a service life of over 20 years.

3. Wide Range of Applications

Glazed tile sheets produced by the roll forming machine are widely used due to their durability and aesthetic appeal in:

  • Industrial Buildings: High-strength materials ensure long-lasting factory roofs that withstand harsh weather conditions.

  • Warehouse Facilities: Easy and quick installation reduces construction costs while improving structural protection.

  • Residential Villas: Available in European or modern styles, enhancing the overall building aesthetics.

  • Large Exhibition Halls and Stadiums: Suitable for large-span structures, ensuring stability and safety.

4. Conclusion

With high-precision forming technology, automated production processes, and customizable options, the glazed tile roll forming machine has become an essential tool in the modern construction industry. Whether for large-scale industrial projects or high-end residential roofing, this machine provides an economical, efficient, and aesthetically appealing solution.

Choosing a high-quality glazed tile roll forming machine not only increases production efficiency but also guarantees product quality, contributing to the steady advancement of the construction sector.

If you're interested in glazed tile roll forming machines, feel free to leave a comment and discuss!

1

How to Improve the Speed of a Glazed Tile Roll Forming Machine

Enhancing the speed of a glazed tile roll forming machine requires optimizing both its mechanical components and control systems. Increasing production speed while maintaining quality is essential for improving efficiency and reducing manufacturing costs. Below are some effective strategies:

1. Upgrade the Transmission System

A high-performance gearbox transmission system can significantly improve production speed. This upgrade reduces the time required for pressing and cutting operations, enabling the machine to reach speeds of up to 10 meters per minute. A well-optimized transmission system minimizes energy loss and ensures smooth operation.

2. Implement Advanced Cutting Techniques

Cutting speed plays a crucial role in the overall efficiency of the roll forming process. Adopting hydraulic cutting or mold cutting systems can provide faster and more precise cuts, reducing interruptions in production. A high-speed cutting mechanism ensures seamless processing, improving the overall output.

3. Optimize Lubrication for Reduced Friction

Proper lubrication is essential for minimizing friction and wear on the machine’s moving parts. Using high-quality lubricants and implementing a scheduled maintenance routine can reduce mechanical resistance, allowing the machine to operate smoothly at higher speeds without excessive wear.

4. Integrate a PLC Automation System

Upgrading to a Programmable Logic Controller (PLC) system can automate key processes such as feeding, pressing, and cutting, improving synchronization and efficiency. A high-efficiency PLC reduces manual intervention, enhances precision, and ensures optimal speed control.

5. Upgrade to High-Power Motors

Equipping the machine with high-power motors allows it to sustain higher speeds without compromising performance. A variable frequency drive (VFD) motor can adjust speed based on production requirements, optimizing energy consumption while maintaining efficiency.

6. Minimize Downtime with Regular Maintenance

Unexpected breakdowns can severely impact production efficiency. Conducting regular inspections, preventive maintenance, and timely replacements of worn-out parts can minimize unplanned downtime. Establishing a predictive maintenance schedule using sensors and real-time monitoring can further enhance machine longevity and operational efficiency.

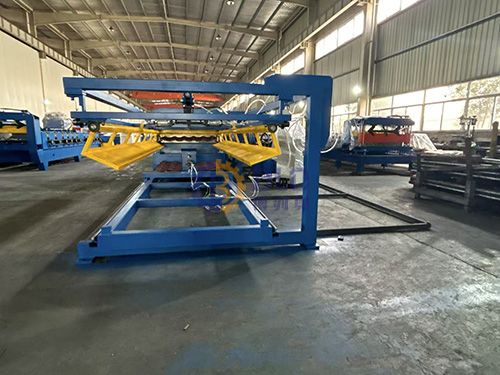

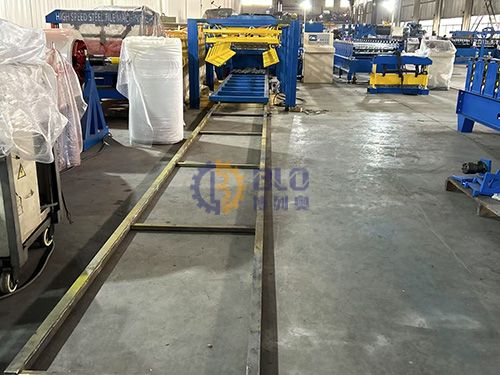

Palletizing System / Stacking System for Tile Roof Panels

The palletizing system in a roll forming machine is a crucial component that automates or semi-automates the handling, stacking, and organizing of finished products. Efficient palletizing ensures streamlined material handling, reducing labor costs and improving productivity.

BLO Machinery offers two primary types of palletizing systems:

  1. Side Shifting Palletizing System – Moves tiles laterally for efficient stacking and easy transportation.

  2. Lengthwise Palletizing System – Stacks tiles in a lengthwise manner, optimizing space and improving material handling.

Customers can choose the appropriate palletizing system based on their factory layout and production needs. An optimized stacking system enhances workflow efficiency, reduces manual labor, and ensures better organization of finished roofing panels.

Conclusion

By implementing advanced transmission systems, high-speed cutting mechanisms, PLC automation, and regular maintenance, manufacturers can significantly increase the speed and efficiency of their glazed tile roll forming machines. Additionally, automated palletizing solutions improve material handling, making the entire production process more streamlined and cost-effective.

For more insights into optimizing roll forming machines, feel free to reach out or explore our latest technological solutions!



3

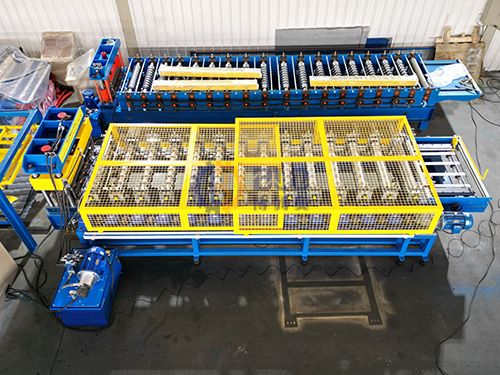

Glazed Tile Roll Forming Machine


4

Glazed Tile Roll Forming Machine


Key Features:


1. Automated Handling: Finished components, such as tile panels and corrugated sheets  for roof industry, are stacked and organized systematically .


2. Flexibility: Systems can handle different sizes and patterns, with adjustable lengths to accommodate multi-size products.


3. High-Speed Integration: Palletizing machines are designed to work seamlessly with high-speed roll forming production lines to avoid bottlenecks .



By automating the palletizing process, manufacturers can achieve greater efficiency, consistent quality, and reduced labor costs.


    Conclusion :Glazed tile roll forming machines represent a significant advancement in modern construction materials technology. They efficiently produce aesthetically pleasing and durable tiles, often imitating traditional clay or wavy profiles, from materials like color-coated steel. The continuous roll-forming process ensures steady production, minimizing downtime and maximizing productivity .


Their widespread adoption has made them essential in construction, helping manufacturers meet the increasing demand for stylish, functional roofing materials that cater to both aesthetic and practical requirements .


    Overall, glazed tile roll forming machines offer a cost-effective, efficient, and reliable solution for producing high-quality roofing tiles, making them invaluable in modern construction industries.
