Grain Bin Machine Production Line

A Grain Silo Roll Forming Machine Line is used for manufacturing grain storage bins, including the production of various components such as corrugated panels, stiffeners, and roofs. The line often includes roll forming machines that create precise profiles for bin walls, roofs, and stiffeners. These production lines are designed for high efficiency and durability, supporting the mass production of storage bins used in agriculture and industry.

Assembling Granary Roof Panel Roll Forming Machine

A grain silo roll forming equipment is used to manufacture roof panels for grain storage silos and industrial granaries. The machine is essential for granary construction. These panels are lightweight, durable, and designed to withstand weather conditions, making them ideal for grain storage facilities.

Production Process and Composition

Divided into two parts: unloading area and forming area.

Unloading Area

loading → unwinding → leveling → rib pressing → oblique horizontal shearing → oblique longitudinal shearing → conveying (one piece is manually unloaded and stacked)

Forming Area

conveying → punching head → cutting notch → forming one side of the edge → punching → discharging → turning → alignment → forming the other side of the edge → punching and stamping → finished product discharging (manual offline stacking)
The process steps to produce the top plate, the specific production process configuration is as follows:
Unloading area Equipment name Set
Loading trolley 1
Uncoiler 1
Leveling machine 1
Embossing machine 1
Diagonal cut 1
Oblique slitting machine 1
Transport material box 1( provides drawings, user-made)


Forming area Equipment name Set
Run out table 2
Removal of excess material, end cutting notch 1
Roll forming 2
Centralized punching unit 2
Dripping eaves forming machine 1
Steering platform 1
Transport material box 1( provides drawings, user-made)
Hydraulic system 1
Electrical control system 1

Production Process and Composition

Brief Description of The Function, Structure and Main Parameters of The Production Line Configuration Unit Machine

Uncoiler One Set

It is equipped with a feeding trolley, which moves longitudinally and feeds materials. The trolley lifting platform is driven by hydraulic control, and the motor is driven to walk.

Leveling Machine

Purpose: to correct the curled sheet into the flat sheet necessary for forming.
Function and structure: used for leveling sheets. It consists of feeding guide device, leveling roller, pneumatic pinch roller, power part and frame composition. Independent three-phase motor drive. The worm gear mechanism is used to adjust the upper and lower gap of the leveling work roll. The leveling speed is adjustable by frequency conversion. The gas source is provided by the customer. The 9 leveling rollers are arranged in a staggered arrangement, 4 on top and 5 on the bottom.

Adjustable Angle Diagonal Cut

Function: Cut out the end of the sheet at 1.5°-13° for the slitting process.
Structure: The shearing machine adopts a mechanical shearing machine, with positioning and clamping devices for precise cutting. The frame is a steel plate welded structure with reliable working performance. The sliding of the upper tool post adopts friction plates and straight guide rails, which can easily adjust the gap of the guide rails and easily ensure the cutting quality. The blade gap is adjusted by the hollow screw and adjusting screw in front of the worktable according to the needs of the plate thickness.

Punching and Cutting of Excess Material and Notching of Ends

Function: Cut off the excess sheet of the material head and punch out the gap at the end.
Structure: Manual feeding, feeding and positioning of sheet materials. The button controls the work of the punching machine.

Roll Forming Two Sets

Function: Roll the ridge section of the roof of various specifications.
Structure: Adopting a multi-roller cold bending forming machine, through 14 rollers, the required cross-section is formed one by one. The forming machine adopts a welded steel plate frame, a single cantilever structure, driven by a three-phase cycloid gear motor, a chain drive mechanism, and a fixed speed.

Dripping Eaves Forming Machine One Set

Function: used to press out the dripping eaves of the broken top plate.
Structure: adopts four-column hydraulic press structure, hydraulically drives the forming mold, manual feeding in and out of the forming machine, the stopper is positioned against the end of the sheet, and the hydraulic cylinder drives the forming mold to turn the end of the profile down.

Hydraulic System

Function: used to control the action of hydraulic parts in uncoiling, punching, cutting, and other devices.

Electrical Control System

The electrical control of multiple functional machines working in coordination adopts PLC man-machine interface input control, and the touch screen controls the production line and modifies the control parameters. The operation mode has various control functions such as automatic, manual, inching adjustment, stand-alone jog, emergency stop, etc.; single-function unit machine part, button control operation, necessary protection.

Safety Protection

The safety protection device is reliable; the signs and nameplates are complete, the paint coating of the unit equipment is carried out in accordance with the coating standards of the machine tool manufacturing, and the color of the top paint is confirmed by the invitation.

Silo Corrugated Panel Roll Forming Machine

A silo corrugated panel roll forming machine is specialized equipment used to produce corrugated metal panels, typically for the construction of steel silos. These machines work by shaping continuous lengths of metal sheets into curved or corrugated profiles. The corrugated panels provide strength and durability, ideal for storing bulk materials such as grain, concrete, and minerals.

Working Flow

This production line consists of hydraulic decoiler with car, leveling feeder, flat shearing machine, slitting mechanism, edge-receiving machine, roll forming machine, hydraulic punching machine(CNC Segmented punching), crimping machine, hydraulic bending and shearing machine, Exit converyor, as well as hydraulic system, electronic control system and other components.
Hydraulic Decoiler →Feeding and Guiding → Roll forming( Edge shaping, slitting and winding)→ Hydraulic Punching→ Bending →Cutting→Exit conveyor

Hydraulic Decoiler With Car

It is used to support steel coil and steel coil unwinding, single cantilever mechanism, the fuselage is welded by section steel and steel plate, the motor reducer drives the uncoiling, and the hydraulic drive wedges tighten the inner wall of the coil. With hydraulic auxiliary support, with pressing arm, with outer baffle, to prevent the material from loosening, install the brake device, the mandrel can be locked to prevent rotation when the machine is stopped, the operation is convenient, the labor intensity can be reduced, and the photoelectric device controls the material level. Loading car: using lateral movement for feeding.

Pressing Head

The press head mechanism is adopted to prevent the curled sheet from being automatically loosened and hurting people when uncoiling. The upper and lower pressing wheel devices of the shovel head are added, so that the sheet is pressed straight and running at the same time, which is convenient for the smooth feeding of the plate head. The shovel head device is driven by a hydraulic cylinder, and the pressing head is driven by an electric reducer to drive the pressing roller.

Feeding and Leveling

The longitudinal centering of the guide device is adjustable, and the adjustable handwheel is on one side, which can be positioned and locked. There is a shovel head mechanism and a pressing mechanism before the guide, which is convenient for the sheet to be lifted into the smooth leveling machine.Used GCr15 HRC58-62;
Leveling :It is used to flatten the sheet and guide the sheet. It is composed of feeding guide device, leveling roller, pneumatic pinch roller, power transmission and frame. Using worm gear mechanism to adjust the upper and lower gap of leveling work roll.

Roll Forming Machine

The forming machine is composed of arch roll frame, machine base, drive system, roller, etc.
The drive system consists of the main motor, the main reducer an the gear box. Driven by the main motor and the main reducer, it is drive t the gear box, and the output shaft of the gear box transmits the power to the upper and lower shaft rollers of the forming machine through the universal joint coupling. The arch roll frame is a casting. The base adopts section steel welded structure. After stress relief treatment, the work surface is integrally processed and assembled on the machining center to ensure the relative assembly accuracy of the arch.

Hydraulic Punching

The hydraulic punching mechanism consists of a frame, a base, a punching models, a hydraulic cylinder and a pressing mechanism, a servo motor, a precision screw, a guide rail, etc.
The method of CNC sub-punching summarizes all the punching holes in the drawing, and any one of the holes in the punching drawing can be arbitrarily selected.(accoding final drawing)

Bending & Cutting

Bending Function: Integral bending design, according to the radian arbitrary adjustment.
Structure: The main body adopts the principle of three-roller bending, and the arc-shaped downward structure is used. Button operation starts and stops operation. Two-pass clamping.
Used to cut off shaped parts to length. It adopts four-column guide post and guide sleeve press structure, independent hydraulic system, touch screen to set cutting length, encoder automatically measures the length, when the set length is reached, the molding machine stops, and the action of the hydraulic cylinder drives the cutting mold to cut off the profile. The host runs automatically after cutting off. A set of shearing dies is included. Knives specially designed for profiles. The blade gap is adjustable to adapt to different plate thicknesses.

Hydraulic System

Function: Control the relevant hydraulic actions of functional units such as decoiler with car, shovel head, forming cutting, punching, stacking and so on.

Electrical System

Function: centralized control of the connection action of the whole line unit machine.
The whole line is equipped with emergency stop buttons to ensure the safety of equipment and operators. The peripheral connection of the control line adopts a quick plug, which does not require wiring when debugging the equipment. The connection of the electrical control line can be quickly completed according to the label, which is convenient for disassembly and assembly and has high reliability. It has the function of fault detection: the signal sequence of the production line is detected and checked in sequence, errors are found, alarms and shutdowns are performed. The control power supply uses 24V, and the electrical control has short circuit, overload, overvoltage, overcurrent, and other protection functions.

Common Applications

Grain Storage

Corrugated panels are widely used in grain silos, offering efficient long-term storage solutions.

Bulk Material Storage

These silos are suitable for storing raw materials like cement and minerals, with reduced construction costs and efficient bulk handling.

Automatic Roll Forming Line of Silo Stiffener

An automatic roll forming line for silo stiffeners is a specialized machine used to produce vertical support beams, or stiffeners, for silos. These stiffeners are critical for reinforcing the silo structure, ensuring its durability and resistance to pressure, especially in large grain storage systems.

Production line process flow

Loading---Uncoiling---leveling and feeding----roll forming---punching----cutting --–final product

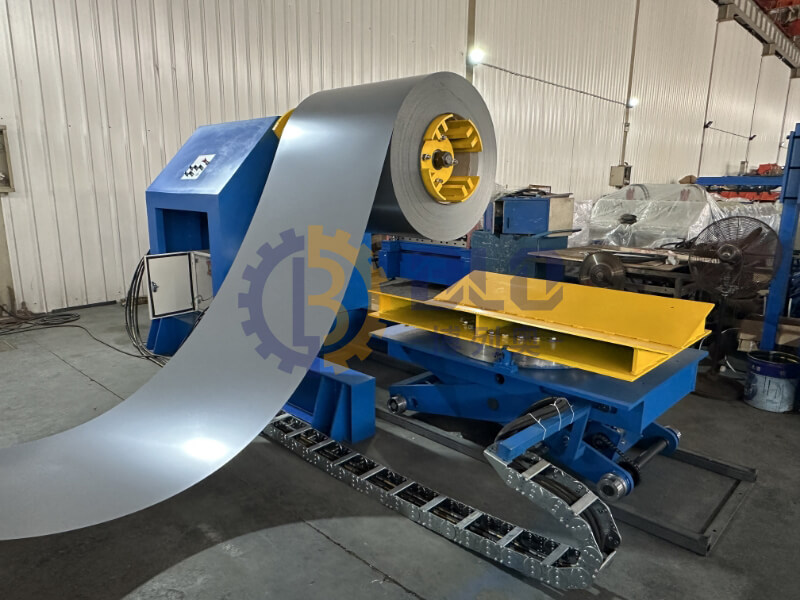

Hydraulic Decoiler

Used to support and open the coil, tensioned by hydraulic, drives by electrical motor reducer, with damping and press arm. With loading car.
The car lift stroke:500mm
Walk stroke:1000mm
Inner diameter of coil: φ430--530mm
Outer diameter of coil: φ1500mm
The coil width: 400mm
Capacity weight: 5T

Main Forming Machine

Function: The flat roll is bent into the shape specification required by the design.
Structure: The molding machine consists of feeding guide, base, power transmission system, forming roll frame, forming roller mold, etc.

Hydraulic Punching Part

Function: punching all the connecting holes on the column and connecting plate.
Structure: Design special hydraulic punching machine according to product requirements. Designed with eight column structure, multiple drive cylinders,
It allows the punching die to be quickly and accurately positioned. The lower template is designed with a special mechanism for easy installation and removal of the mold.

Hydraulic Cutting

Function: It is used to cut the rib profile of each specification.
Structure: The plate length is accurately measured by the high-speed fiber + encoder mode, the profile is stopped, and the hydraulic cutter is cut off. When cutting off. Producing the necessary waste, the cutter is designed to contour the shear cavity to prevent deformation of the section and reduce the occurrence of burrs in the section. The forming shear is mounted on the linear guide base, and the lead screw adjusts the distance between the punch and the punch. After adjustment, the number of downtimes can be reduced as much as possible, and the production efficiency is improved.
The hydraulic station that controls the cut-off uses a differential circuit and an accumulator to increase the shear rate and match the production speed of the production line. Shut off hydraulic station with cooling device

Hydraulic System

To supply the power for the hydraulic cutter.

PLC Control System

The whole line adopts Schneider PLC control, human and machine screen. There are two operation types (Manual and automatic), the line just need one worker to operate in normally.
The surrounding wires adopt quick plug. It is no need to connect wires when adjusting machines, and can quickly connect the control circuits. It is very conveniently to dismantle and has high reliability.
It has some emergency buttons, which can promise the worker safe when emergent things happen.

Common Applications

The exact design and specifications of a silo stiffener roll forming machine may vary depending on the requirements of the manufacturer and the specific stiffener profiles needed for the silos they produce. These machines are typically used in industrial settings and are capable of producing stiffeners efficiently and with high precision.
