Steel Slitting Line

Steel Slitting Equipment

Sheet metal slitter is one of our manufacture to maintain high precision of steel strips. This steel slitting line machine can also be used in various industries requiring narrow coil strips. The steel slitting lines carry out processes of master coil uncoiling, slitting and recoiling it into the desired width. Further, the process is suitable for various types of metal coil materials, including:

  Cold-rolled and hot-rolled carbon steel coils
  Silicon steel coils
  Tinplate
  Stainless steel coils
  Aluminum alloy coils
  Alloy steel coils
  Various metal coils materials with surface coatings

Brief Instruction

High speed steel coil slitting line is used for uncoiling, slitting and recoiling the steel plate to prepare for the next process.

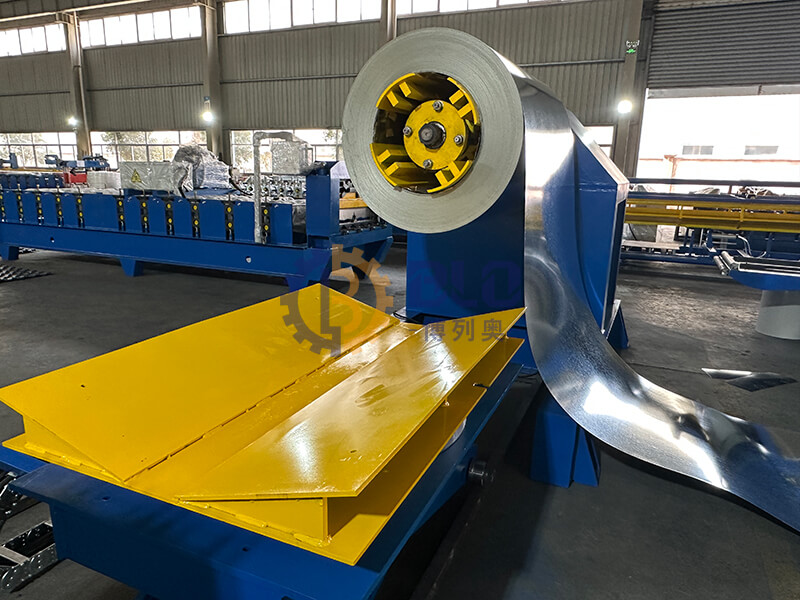

Hydraulic Entry Coil Car

 The car can move levelly and 180 degrees of rotation, which is convenient for putting the steel coils into the de-coiler.
 It is driven vertically by hydraulic cylinder with four guide pillars.
 The movement is driven by cycloid motor,and 180 degree rotation requires manual assistance.
 The capacity of it can reach to 10Tons(MAX).
 Function: It is used to lift up and down, with 180 degrees of rotation,make it easy to load the coils on decoiler. Hydraulic controls lifting, motor drives moving and Manual 180 degree rotation. The car is controlled on the auxiliary control panel. Its moving speed is 6-7m/min. When the coils on decoiler, the car will return back to the start position. It can also carry back the unfinished coils from decoiler.

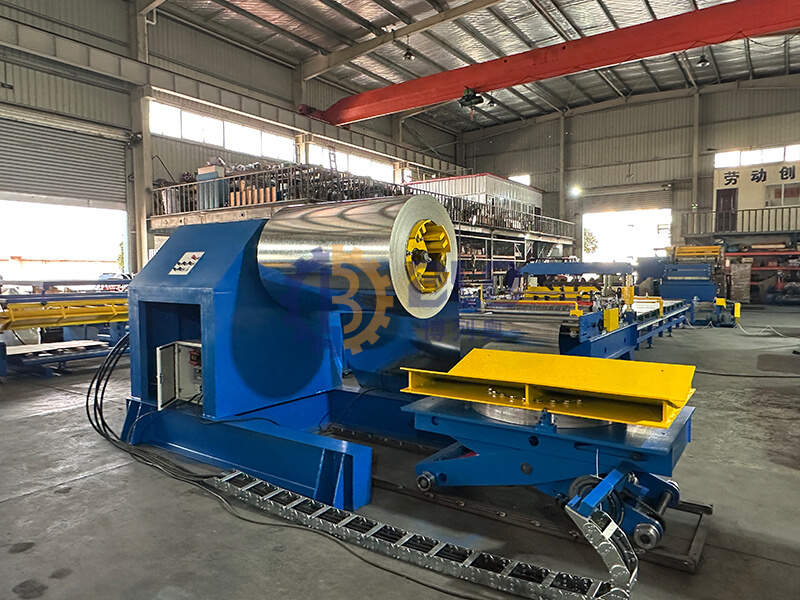

Hydraulic De-coiler

 Structure: Hydraulic expand and shrink to tight the inner hole of steel coils.
 Specification: Φ520max/480min×1300mm.
 The max capacity: 10T with simple supporting stand.
 Function: Fixed the coil to achieve unwinding function, with brake. The car makes the inner holes of steel coils aim at the de-coiler center. The hydraulic expand and shrink de-coiler is driven by hydraulic, to tight the inner hole of steel coil.

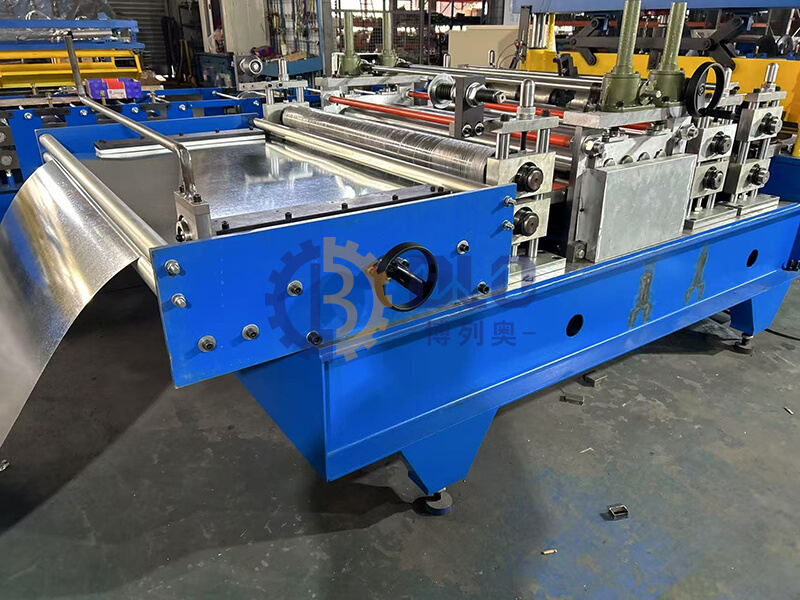

Side Guide Device

 It is used to guide the sheet right into the slitter.
 The adjusting width is: 500-1300mm.

Slitting Machine

 Electric motor: 4KW frequency conversion control motor to control the speed. Control mode is frequency control.
 Reducer: cycloidal reducer.
 Function: It equips the side guide device, to achieve positioning strip and stop the jumping of strip. Improve the accuracy of slitting. It can shear actively or passively. To achieve different strip thickness accuracy requirements of slitting.

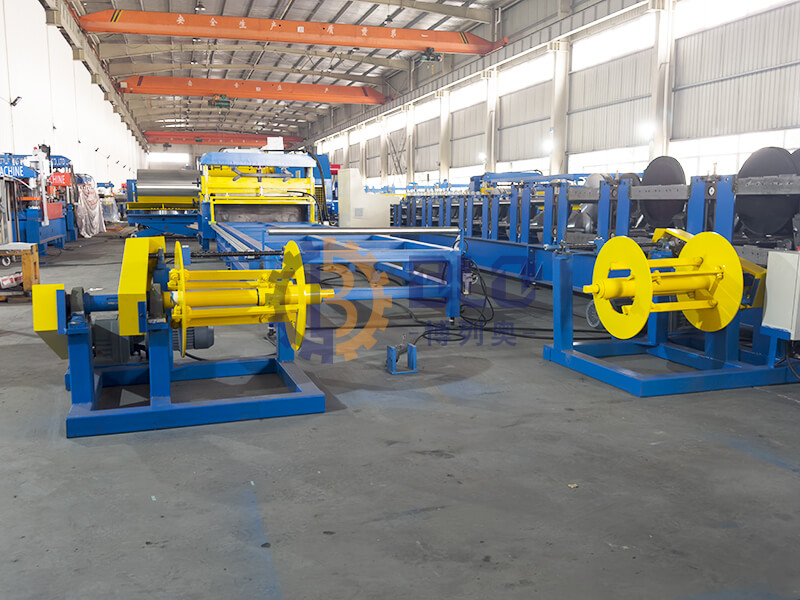

Scrap Winder

 It used to wind the scarp strips.
 It consists of base, the shaft and plate of scrap material, friction wheel, supporting wheel chain, chain, decelerator and 3kw motor.

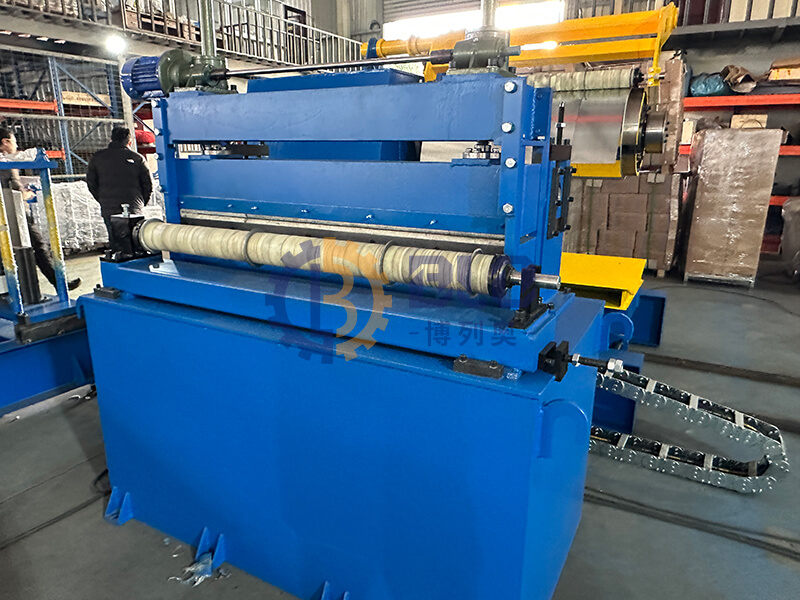

Damping Device

 The frame welded by steel plates.
 Consist of base, pre-dividing shaft, bracket, press shaft, hydraulic damp device and hydraulic shaft lifting the press down device. Supporting slices, spacers and etc.
 Function: It also have the side guide device for finished strips and prevent them from jumping and improve the recoiler quality. To establishing a stretching force with recoilier, to make sure the even quality and tight of steel coils after recoiling.

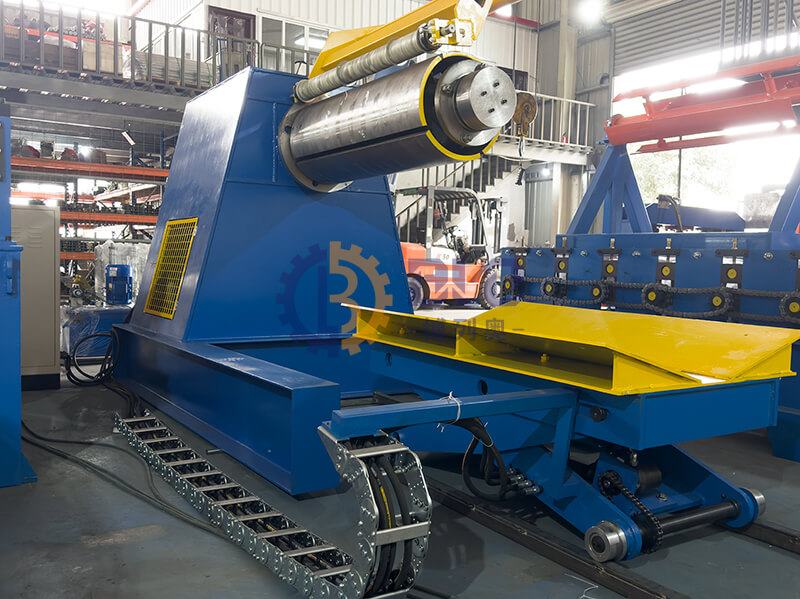

Hydraulic Recoiler

 Structure: hydraulic expand and shrink model.
 Φ508mm×1300 Specification of shaft: Φ508mmx1300.
 Capacity: P≤10T with simple supporting stand.
 Motor: 15KW.
 Overall steel plate cantilever structure.
 Function: It cooperates with the finished steel strips after first pre-dividing and second dividing to insure the even and tight quality of recoiler. Recoiling tension adjustable, Recoiling speed adjustable.

Hydraulic Exit Coil Car

 The car can move levelly and vertically, which is convenient for putting the steel coils into the de-coiler.
 It is driven vertically by hydraulic cylinder with four guide pillars.
 The level movement is driven by cycloid motor.
 The capacity of it can reach to 10Tons(MAX).

Hydraulic System

 Composed of hydraulic oil pump, pipes, connectors, etc.
 Ensure the use of every hydraulic part.

Electrical Control System

 It controls the speed of the whole line. The main operation table can make the whole line change from high to low speed. And it can also make the plate into the machine manually.
 PLC: Mitsubishi or Siemens.
