A Metal Floor Deck Roll Forming Machine is a specialized piece of equipment used in the construction industry to produce metal floor decks or profiles. These decks are commonly used in commercial, industrial, and residential buildings to provide structural support for concrete floors, creating a composite floor system. The machine forms metal coils into specific profiles through a series of rollers and dies.
Key Features of a Metal Floor Deck Roll Forming Machine:
Material Compatibility:
Works with various types of metal coils, such as galvanized steel, stainless steel, or aluminum.
Typical thickness ranges from 0.4mm to 1.5mm.
Profile Customization:

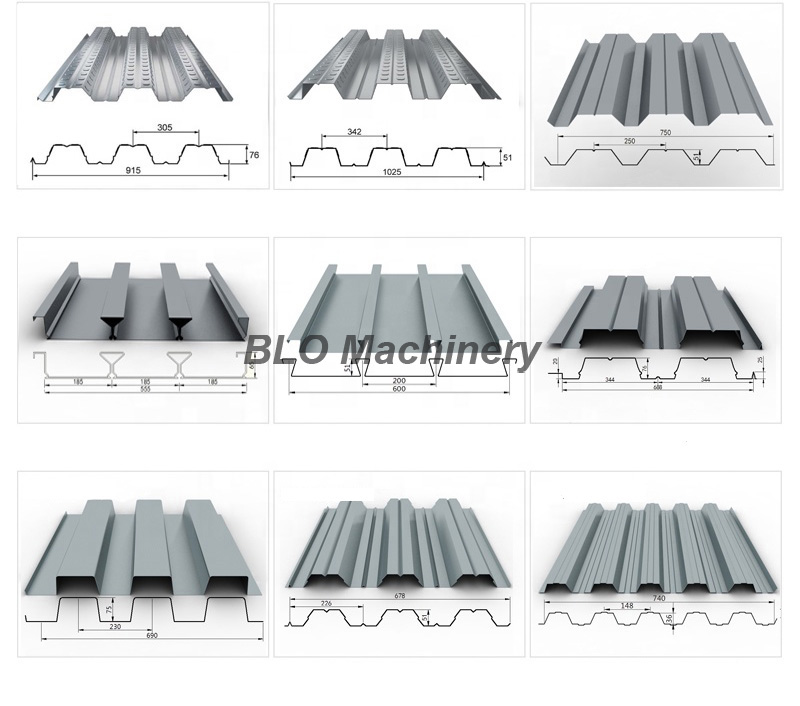

Can produce different floor deck profiles (e.g., dovetail, trapezoidal, or re-entrant profiles) based on design requirements.
Profiles are designed to enhance load-bearing capacity and bonding with concrete.
Roll Forming Process:
The machine uses a series of rollers to gradually shape the metal coil into the desired profile.
The process is continuous, allowing for high-speed production.
Cutting System:
Equipped with a cutting mechanism (e.g., hydraulic or pneumatic) to cut the formed deck to the required length.
Cutting can be programmed for precision and automation.
Control System:
Modern machines feature PLC (Programmable Logic Controller) systems for automation and precision.
Touchscreen interfaces allow operators to adjust parameters like speed, length, and profile dimensions.
Production Capacity:
High-speed machines can produce up to 30 meters per minute, depending on the complexity of the profile.
Suitable for large-scale construction projects.
Additional Features:
Automatic coil loading and feeding systems.
Safety features like emergency stop buttons and protective guards.
Optional punching or embossing units for creating holes or patterns in the deck.
Applications of Metal Floor Decks:
Composite Floor Systems: Used in conjunction with concrete to create strong, lightweight floors.
Formwork: Provides temporary support for wet concrete until it hardens.
Roofing and Wall Panels: Sometimes used for roofing or wall cladding in addition to flooring.
Advantages of Using a Roll Forming Machine:
High Efficiency: Continuous production with minimal downtime.
Precision: Consistent and accurate profiles with tight tolerances.
Cost-Effective: Reduces labor costs and material waste.
Versatility: Ability to produce multiple profiles with quick changeovers.
When purchasing a Metal Floor Deck Roll Forming Machine, it's essential to consider several key factors to ensure you select the right equipment for your needs. Here are the critical points to evaluate:
1. Production Requirements
Output Capacity: Determine the required production speed (e.g., meters per minute) based on your project volume.
Material Thickness: Ensure the machine can handle the thickness of the metal coils you plan to use (typically 0.4mm to 1.5mm).
Profile Complexity: Check if the machine can produce the specific floor deck profiles (e.g., trapezoidal, dovetail, re-entrant) you need.
2. Material Compatibility
Type of Metal: Verify that the machine is compatible with the materials you intend to use (e.g., galvanized steel, stainless steel, aluminum).
Coil Width: Ensure the machine can accommodate the coil width required for your floor deck profiles.
3. Machine Specifications
Roller Stations: The number of roller stations determines the precision and complexity of the profiles. More stations allow for more intricate designs.
Cutting System: Choose between hydraulic, pneumatic, or servo cutting systems based on your precision and speed requirements.
Forming Speed: Check the maximum forming speed (e.g., 10-30 meters per minute) to match your production needs.
4. Automation and Control
PLC System: A Programmable Logic Controller (PLC) ensures automation, precision, and ease of operation.
Touchscreen Interface: Look for user-friendly controls for adjusting parameters like length, speed, and profile dimensions.
Automatic Coil Feeding: Reduces manual labor and improves efficiency.
5. Customization Options
Profile Flexibility: Ensure the machine can be adjusted or customized to produce different profiles.
Punching/Embossing Units: If you need holes or patterns in the floor deck, check if the machine supports these features.
6. Build Quality and Durability
Frame and Rollers: The machine should be made of high-quality materials (e.g., hardened steel) to ensure durability and long-term performance.
Maintenance Requirements: Choose a machine with easy maintenance access and low upkeep costs.
7. Safety Features
Emergency Stop Buttons: Ensure the machine has safety mechanisms to protect operators.
Protective Guards: Look for safety guards around moving parts to prevent accidents.
8. After-Sales Support
Warranty: Check the warranty period and what it covers.
Technical Support: Ensure the manufacturer provides reliable technical support and training for operators.
Spare Parts Availability: Verify that spare parts are readily available to minimize downtime.
9. Budget and Cost-Effectiveness
Initial Cost: Compare prices from different manufacturers, but avoid compromising on quality.
Operating Costs: Consider energy consumption, maintenance, and labor costs.
Return on Investment (ROI): Evaluate how quickly the machine will pay for itself based on your production output.
10. Manufacturer Reputation
Experience: Choose a manufacturer with a proven track record in producing roll forming machines.
Customer Reviews: Look for feedback from other buyers to assess reliability and performance.
Certifications: Ensure the manufacturer complies with industry standards (e.g., ISO, CE).
11. Installation and Training
Installation Services: Check if the manufacturer provides installation and setup services.
Operator Training: Ensure the supplier offers training for your team to operate the machine efficiently.
12. Future Expansion
Upgradability: Consider whether the machine can be upgraded or modified to meet future needs.
Scalability: Ensure the machine can handle increased production volumes if your business grows.
By carefully evaluating these key points, you can select a Metal Floor Deck Roll Forming Machine that meets your production requirements, budget, and long-term business goals. Always request a demonstration or trial before making a final decision to ensure the machine performs as expected.
