Solar Photovoltaic Bracket Forming Machine Market Analyse

The solar photovoltaic bracket forming machine market is experiencing significant growth due to the global expansion of solar energy infrastructure. Key factors driving this market include:

1.Rising Solar Energy Demand: As global governments and industries transition to renewable energy, the need for efficient and scalable mounting systems is growing, boosting demand for photovoltaic bracket forming machines .

2.Market Growth: The solar panel frame forming machine market was valued at USD 450 million in 2022 and is expected to reach USD 900 million by 2030, showing robust growth potential.

3.Technological Innovation: Manufacturers are introducing high-speed and automated machines (e.g., 25m/min models) that improve productivity and reduce labor costs, making them more attractive to large-scale PV projects .

4.Customization & Flexibility: Machines are increasingly designed to handle various sizes, shapes, and punching needs to suit different terrains and installations, such as rooftop and ground-mount solar systems .

Overall, the market reflects a strong alignment with the global decarbonization agenda and is likely to continue its upward trend.

Here's a detailed overview of a Solar Photovoltaic (PV) Bracket Forming Machine, covering its functions, components, and technical specifications:

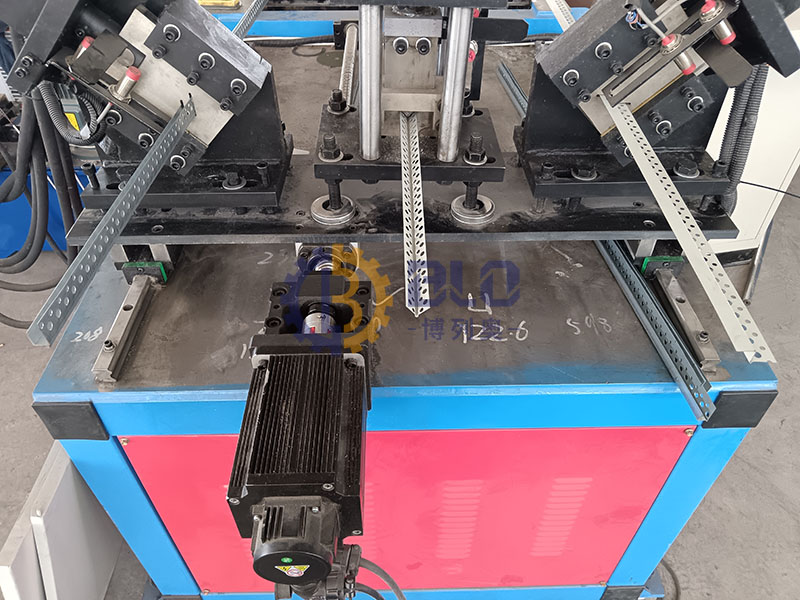

1. What is a Solar PV Bracket Forming Machine?

A fully automated roll forming system designed to manufacture metal mounting structures for solar panels. It produces:

Support rails (C/U/Z-profiles)

Ground mounts & legs

Roof hooks & clamps

Adjustable tilt brackets

2. Machine Components & Workflow

A. Material Input

Decoiler: Unwinds steel/aluminum coils (common thickness: 1.0–4.0mm)

Leveling Unit: Flattens metal strips for precise forming

B. Roll Forming Section

10–24 forming stations progressively shape the metal into solar bracket profiles

Quick-change rollers allow switching between different bracket designs

C. Punching & Hole Drilling

Hydraulic/Servo Punching: Creates bolt holes, mounting slots, and ventilation holes

CNC-controlled for accuracy (±0.2mm tolerance)

D. Cutting System

Flying cut (for high-speed production) or hydraulic shear (for thick materials)

Cut-to-length precision: Standard sizes (1m–6m) or custom lengths

E. Output & Automation

Automatic stacking or conveyor belt for finished brackets

Optional robotic arms for packaging

Key Features

A. High Speed: 15–40 meters per minute

B. Material Compatibility:

Galvanized steel (most common)

Aluminum (lightweight for rooftop systems)

Stainless steel (for coastal/corrosive environments)

Customization: Adjustable for different tilt angles (0°–60°)

C. PLC Control: Touchscreen interface for easy operation
