A column for a highway guardrail, often referred to as a post or guardrail post, is a vertical structural component that supports the guardrail system. These columns are typically made of materials like steel, wood, or concrete and are installed at regular intervals along the guardrail to provide stability and strength. They anchor the guardrail to the ground and help absorb and distribute the impact forces from vehicles, enhancing safety on highways.
Key features of guardrail columns:
Spacing: Typically spaced 6 to 8 feet apart, depending on the design and regulatory standards.
Height: Designed to align with the guardrail height, ensuring proper vehicle deflection during collisions.
Material: Steel posts are most common, but wood or concrete may be used in specific situations.
Installation: Driven into the ground or embedded in concrete to ensure stability.
The columns work in conjunction with the guardrail beams (or rails) and other components like end treatments and blockouts to create a cohesive safety system.
How to produce highway guardrail column from steel？
Producing highway guardrail columns (posts) from steel using a roll forming machine is a highly efficient and precise manufacturing process. Here's a step-by-step guide to how it’s done:
1. Material Selection
Choose the appropriate steel material, typically galvanized steel or carbon steel, to ensure durability and corrosion resistance.The steel is usually supplied in coils or sheets, with a thickness and width suitable for guardrail column production.
2. Uncoiling and Feeding
The steel coil is loaded onto an uncoiler and fed into the roll forming machine.
A straightening unit ensures the steel strip is flat and free of deformities before entering the roll forming process.

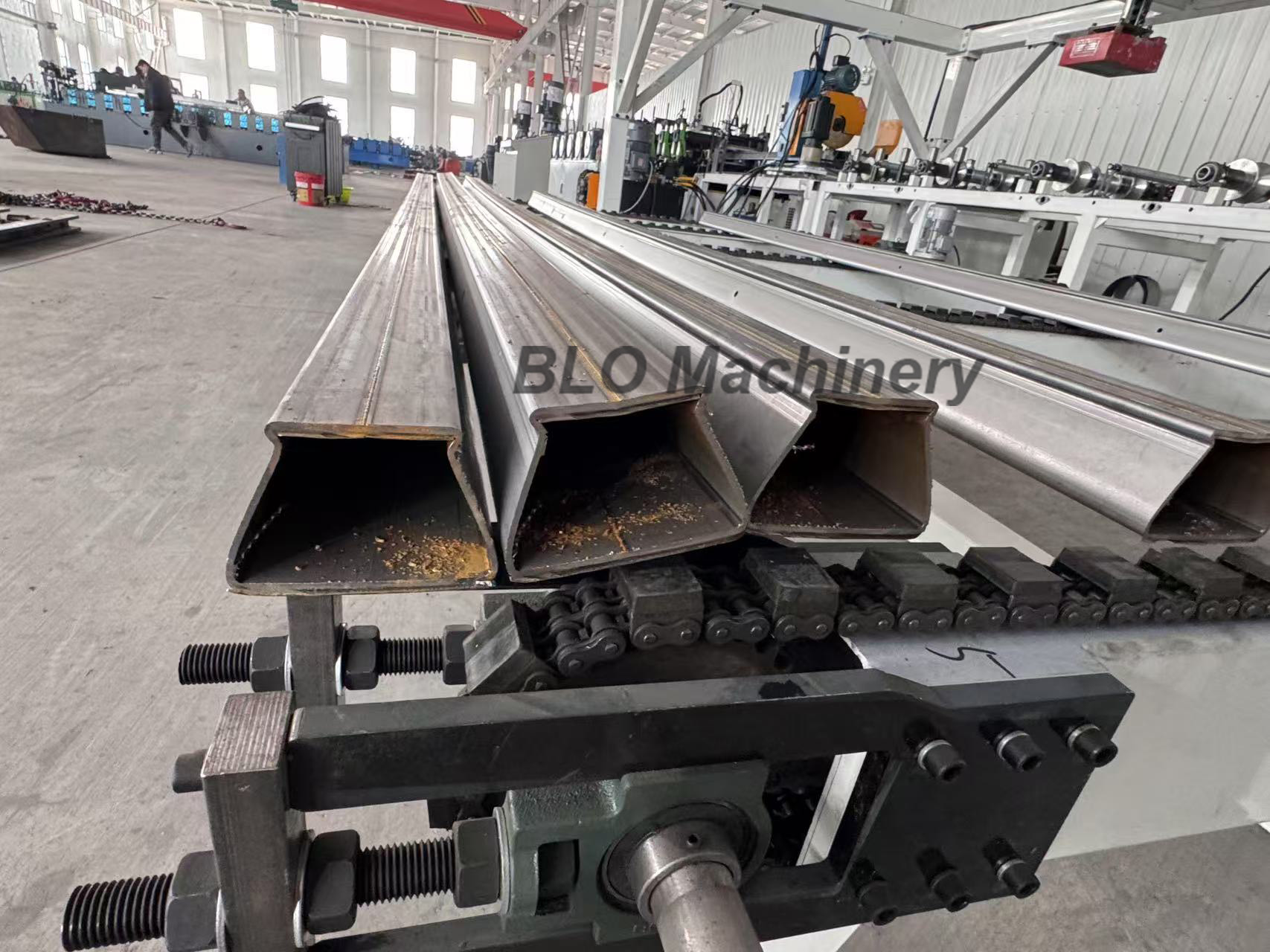

3. Roll Forming Process
The steel strip passes through a series of roll forming stands (rollers) that gradually shape it into the desired profile for the guardrail column.Each set of rollers bends the steel incrementally until the final cross-sectional shape (e.g., C-channel, U-channel, or W-beam) is achieved.The process is continuous, allowing for high-speed production.
4. Punching and Cutting
After the steel is formed into the desired profile, it passes through a punching unit to create holes or slots in the column for bolts, screws, or other fasteners.
A cutting unit (e.g., a flying cut-off saw or hydraulic shear) cuts the formed steel into the required lengths for guardrail columns.
5. Galvanizing (Optional)
If the steel is not pre-galvanized, the guardrail columns may undergo a hot-dip galvanizing process to coat them with a protective layer of zinc, enhancing corrosion resistance.
6. Quality Control
Inspect the finished guardrail columns for dimensional accuracy, hole alignment, and surface quality.Ensure compliance with industry standards.
Key Advantages of Guardrail Roll Forming Machine Columns
High Efficiency: Continuous production with minimal waste.
Precision: Consistent dimensions and high-quality finishes.
Customization: Ability to produce various shapes and sizes.
Cost-Effective: Reduced labor and material costs compared to other methods.

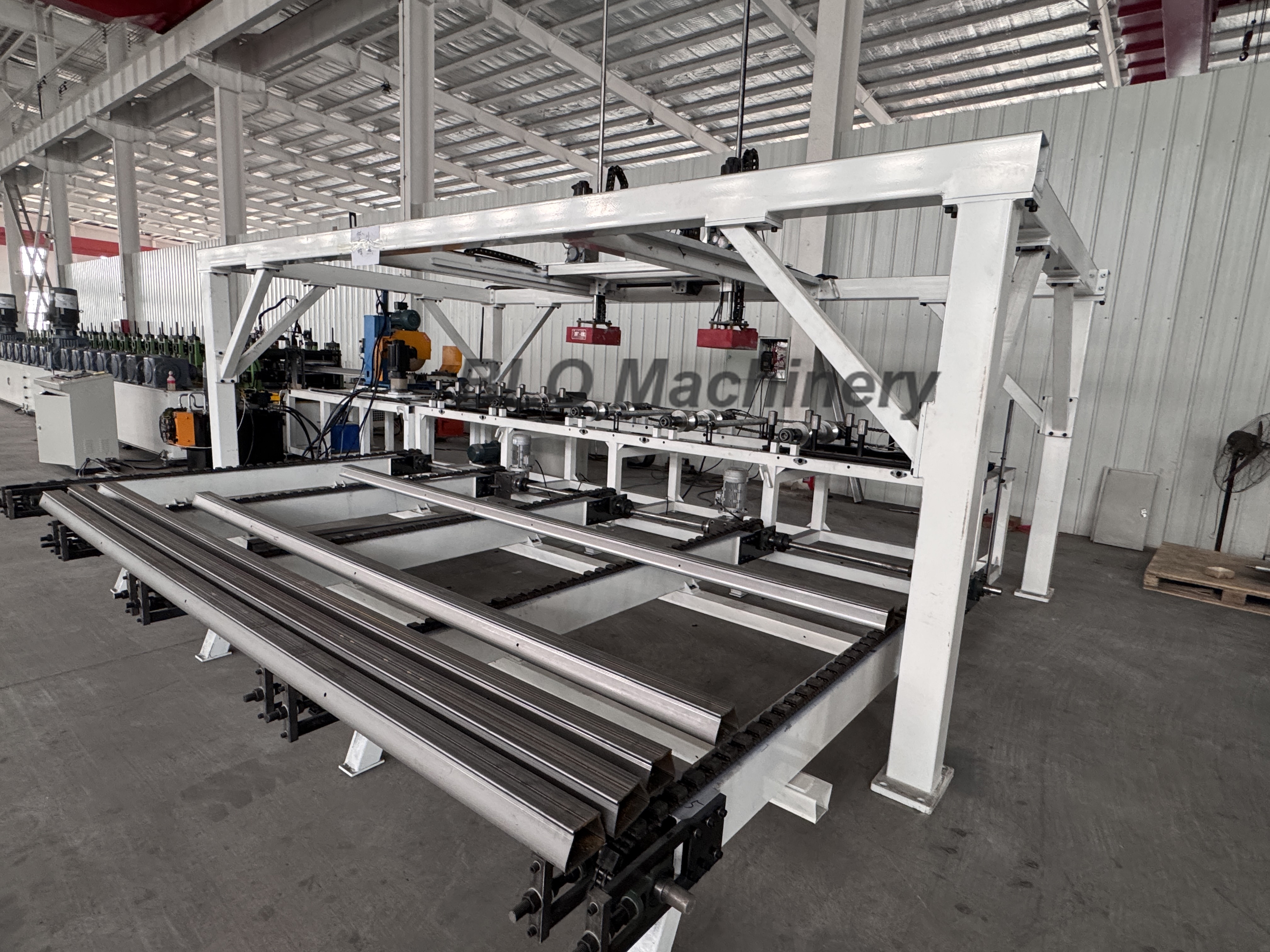

Equipment Required
Uncoiler, Roll forming machine with multiple stands, Punching unit, Cutting unit, Quality control tools (e.g., calipers, gauges)
By using a roll forming machine, manufacturers can produce highway guardrail columns in large quantities while maintaining high quality and meeting safety standards.
FAQ of highway guardrail column roll forming machine
1. What is a roll forming machine for highway guardrail columns?
A roll forming machine is a specialized piece of equipment used to shape steel coils or sheets into guardrail columns (posts) through a continuous bending process. It uses a series of rollers to gradually form the steel into the desired profile, such as C-channel, U-channel, or W-beam.
2. What materials can be used in a guardrail column roll forming machine?
Galvanized steel: Most common due to its corrosion resistance.
Carbon steel: Durable and cost-effective.
Pre-painted steel: For additional aesthetic or protective purposes.
3. What shapes can a roll forming machine produce for guardrail columns?
Common shapes include:C-channel,U-channel,W-beam,Custom profiles based on design requirements.
4. What is the production capacity of a roll forming machine?
Production capacity depends on the machine's speed and configuration. Typical machines can produce 10 to 50 meters per minute, with higher-end machines achieving even greater speeds.
5. What thickness of steel can a roll forming machine handle?
Most roll forming machines for guardrail columns can handle steel thicknesses ranging from 1.2 mm to 6 mm, depending on the machine's design.
6. Can the machine produce columns of different lengths?
Yes, the cutting unit can be programmed to cut the formed steel into various lengths, typically ranging from 1.5 meters to 3 meters for guardrail columns.
7. Is the machine customizable for different guardrail designs?
Yes, roll forming machines can be customized to produce different profiles, hole patterns, and lengths based on specific guardrail design requirements.
8. What maintenance is required for a roll forming machine?
Regularly lubricate rollers and moving parts.
Inspect and replace worn-out rollers or cutting blades.
Clean the machine to prevent dust and debris buildup.
Check the alignment of rollers and punching units periodically.
9. Can the machine be automated?
Yes, modern roll forming machines can be fully automated with PLC (Programmable Logic Controller) systems for precise control, monitoring, and efficiency.
By addressing these FAQs, you can gain a better understanding of how roll forming machines work and their role in producing highway guardrail columns efficiently and effectively.
