Working with a Double Line Two Profile Shutter Door Roll Forming Machine involves understanding its operation, setup, and maintenance. This machine is designed to produce shutter door slats (profiles) from metal coils, typically used in rolling shutters, security doors, or garage doors.
Below is a step-by-step guide to help you work with this machine effectively:
1. Understand the Machine Components
Before operating the machine, familiarize yourself with its key components:
Uncoiler: Holds and feeds the metal coil into the machine.
Roll Forming Stations: A series of rollers that gradually shape the metal into the desired profile.

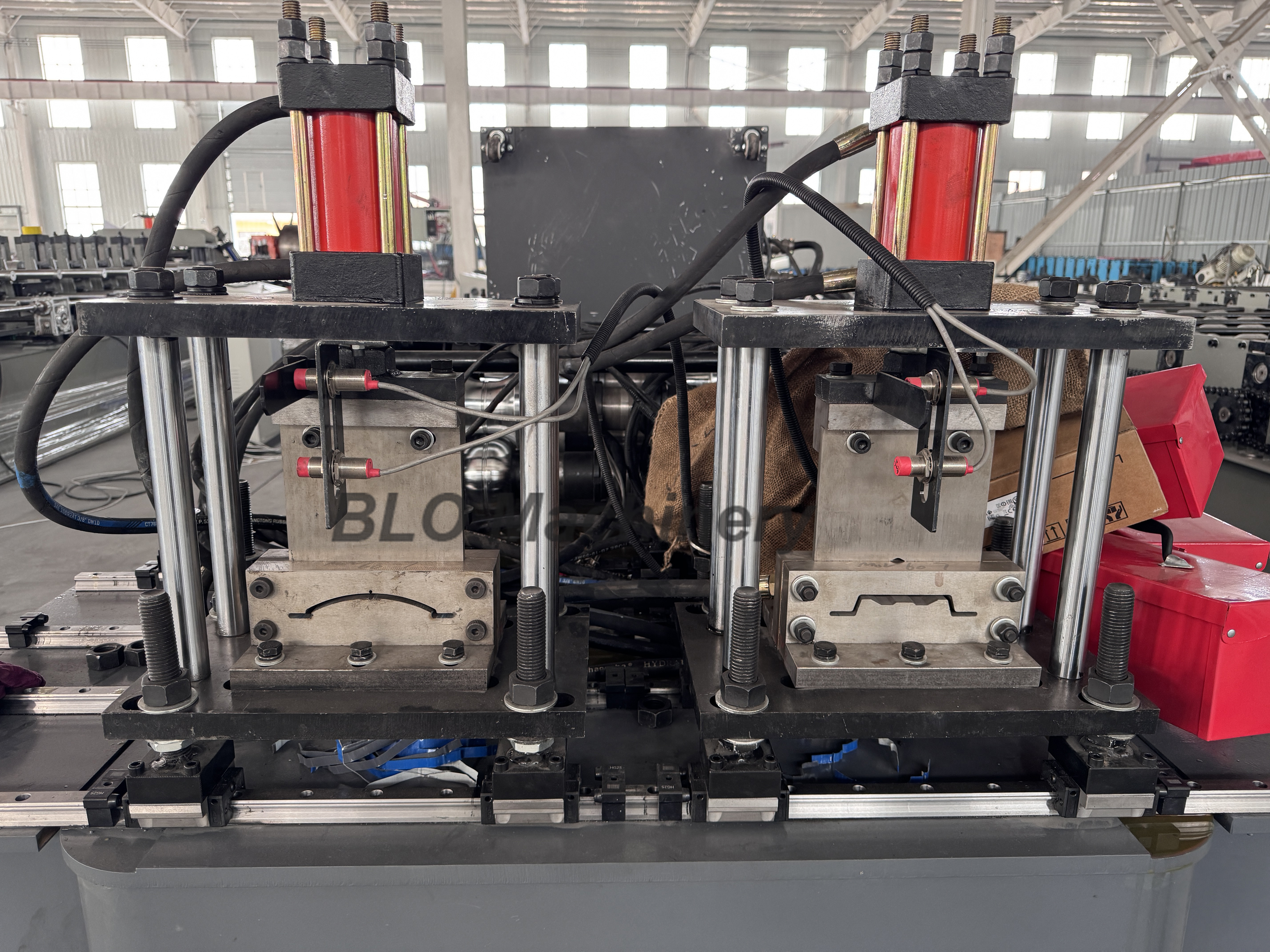

Cutting System: Cuts the formed profile to the required length.
Control Panel: Used to set parameters like speed, length, and quantity.
Double Line Setup: Allows simultaneous production of two different profiles.
Hydraulic/Pneumatic System: Powers the cutting and forming mechanisms.
-Output Conveyor**: Transports finished profiles for stacking or packaging.
2. Safety Precautions
- Wear appropriate PPE (gloves, safety glasses, etc.).
- Ensure the machine is properly grounded and all safety guards are in place.
- Keep hands and clothing away from moving parts.
- Follow the manufacturer’s safety guidelines.
3. Machine Setup
1. Load the Metal Coils:
- Place the metal coils on the uncoiler.
- Ensure the coils are aligned with the feed line to avoid misalignment during forming.
2. Thread the Material:
- Feed the metal strip through the roll forming stations.
- Adjust the rollers to match the thickness and width of the material.
3. Set the Profile Parameters:
- Use the control panel to input the desired profile dimensions, length, and quantity.
- Ensure the double line setup is configured for the two profiles you intend to produce.
4. Adjust the Cutting System:
- Set the cutting length and ensure the cutting mechanism is synchronized with the roll forming process.
4. Operating the Machine
1. Start the Machine:
- Power on the machine and run it at a low speed initially to check for alignment and quality.
- Gradually increase the speed to the desired production rate.
2. Monitor the Process:
- Watch for any misalignment, material jams, or defects in the formed profiles.
- Ensure both lines are producing profiles correctly.
3. Inspect the Output:
- Check the dimensions, shape, and surface quality of the finished profiles.
- Make adjustments to the rollers or cutting system if necessary.
5. Maintenance
- Regularly clean the rollers and cutting blades to prevent material buildup.
- Lubricate moving parts as per the manufacturer’s recommendations.
- Inspect and replace worn-out rollers or blades.
- Check hydraulic/pneumatic systems for leaks or pressure issues.
6. Troubleshooting Common Issues
- Misaligned Profiles: Adjust the rollers or check the coil alignment.
- Inconsistent Lengths: Calibrate the cutting system.
-*Surface Scratches: Clean the rollers or replace damaged ones.
- Machine Jams: Stop the machine, clear the jam, and inspect for obstructions.
7. Shutdown Procedure
- Stop the machine and cut off the power supply.
- Remove any remaining material from the rollers.
- Clean the machine and perform routine maintenance if needed.
8. Training and Documentation
- Ensure operators are trained on the specific machine model.
- Refer to the manufacturer's manual for detailed instructions and troubleshooting tips.
By following these steps, you can efficiently operate and maintain a Double Line Two Profile Shutter Door Roll Forming Machine, ensuring high-quality production and minimal downtime.
