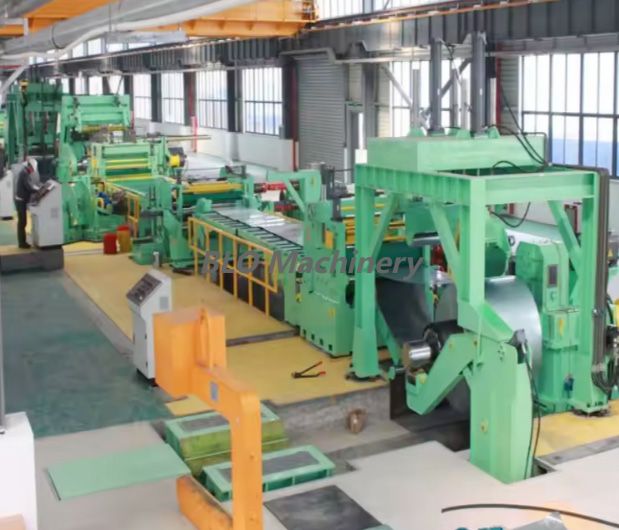

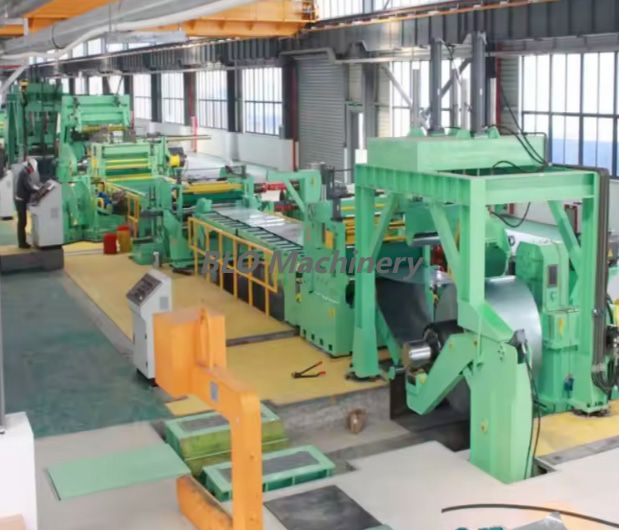

A Metal Cutting To Length Machine is an industrial machine designed to take a large coil of sheet metal and process it by uncoiling, straightening, and then cutting it into individual, flat sheets of a pre-determined length.It is a crucial piece of equipment in metal service centers and manufacturing plants, bridging the gap between coiled steel (which is efficient for transport and storage) and flat sheets (which are required for fabrication).

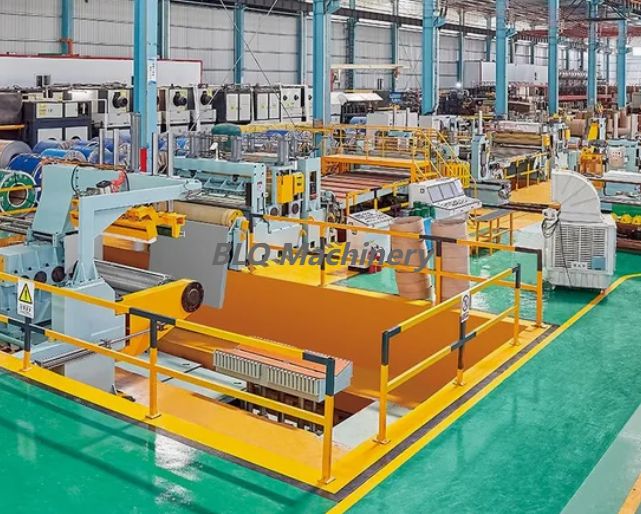

The machine is a coordinated system of components arranged in a line. Here is the typical work progress:

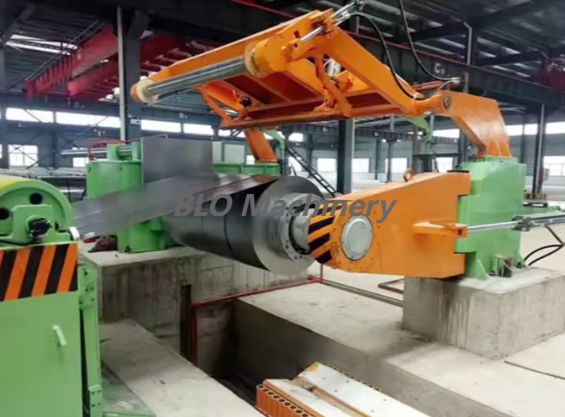

1.Loading: A heavy master coil is loaded onto the Uncoiler (or Decoiler) using a crane or forklift. The uncoiler's mandrel expands to grip the coil from the inside.
2.Uncoiling & Straightening: The leading end of the coil (the "head") is fed into the machine.

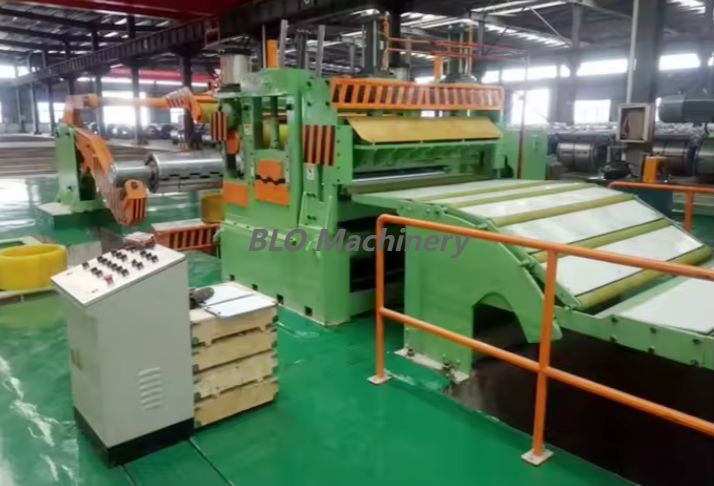

It first passes through a Flattener or Leveler. This is a set of rolls (often small-diameter backup rolls supported by larger rolls) that bend the metal back and forth beyond its yield point to permanently remove the coil curvature (coil set) and create a perfectly flat sheet.
3.Measuring & Feeding: The now-flat sheet is fed into the cutting area by a set of powered pinch rolls.
An encoder measures the exact length of the sheet as it passes through. When the pre-set length is reached, the feeding mechanism stops.
4.The Cut:
A Shear (typically a hydraulic or mechanical guillotine shear) descends and cleanly cuts the sheet to the exact required length.
The cutting action can be a single cut for each sheet or a "flying cut" where the shear moves with the material for high-speed production.
5.Stacking & Unloading:
The cut sheet is conveyed forward onto a Stacker or Piling Table.
The stacker automatically aligns the sheets and builds a neat, uniform stack (or "bundle").
Once the stack reaches a pre-determined number of sheets or height, it is strapped, and then unloaded for storage or shipment.
Uncoiler/Decoiler: Holds and unwinds the master coil.
Flattener/Leveler: The critical component for removing coil curvature.
Pinch/Feed Rolls: Precisely pull the material through the line.
Measuring System: Typically an encoder wheel, for precise length control.
Shear: The cutting device (guillotine, flying shear).
Stacker/Piling Table: Collects and aligns the finished sheets.
Control Panel (PLC): The brain of the machine, where operators input material type, thickness, and desired sheet length and quantity.
Standard Cut-to-Length (CTL): As described above, for general-purpose sheet production.
Precision Cut-to-Length Line: Has higher-end components (servo-driven feeds, precision levelers) for critical applications with very tight tolerances on flatness and length.
Combination Lines: Some lines can both Slit (cut a wide coil into narrower strips) and then Cut-to-Length, offering maximum flexibility.
In essence, a Metal Cutting To Length Machine is the workhorse that converts the efficiency of coiled steel into the practicality of ready-to-use flat sheets.
Cut-to-length sheets are used everywhere in manufacturing:
Automotive: Body panels, chassis parts.
Appliances: Refrigerator sides, oven cabinets.
Construction: Roofing, wall panels, structural sections.
Furniture: Desks, shelving, cabinets.
General Fabrication: As the starting blank for laser cutting, punching, and bending.
