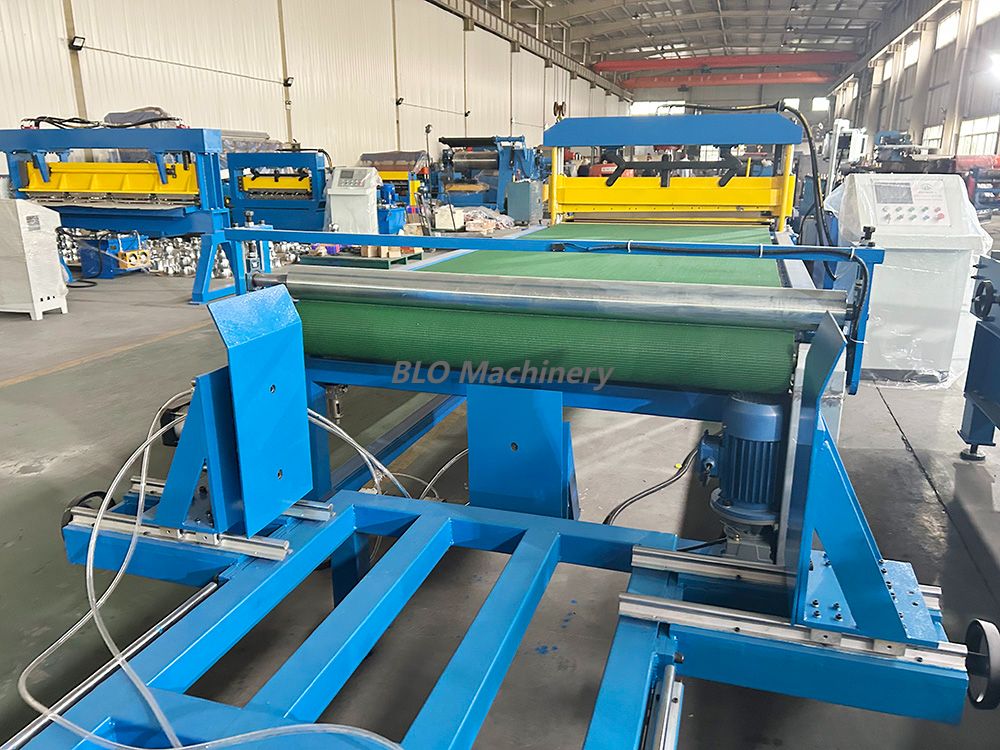

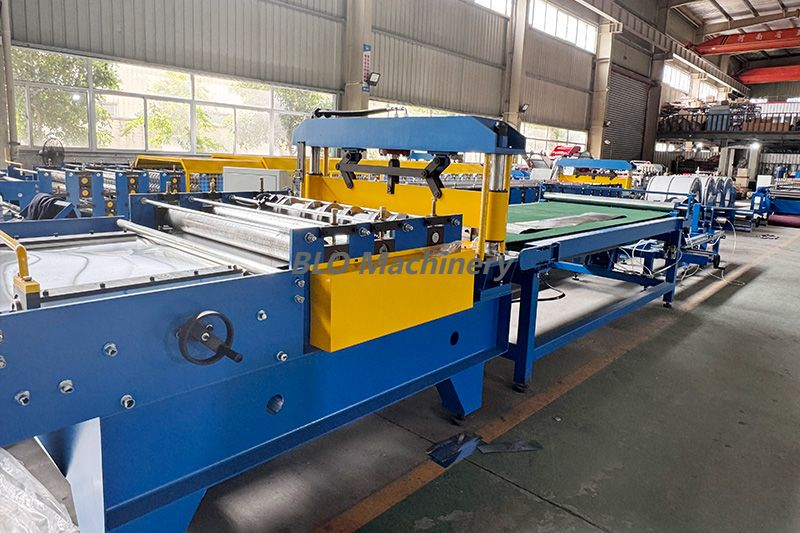

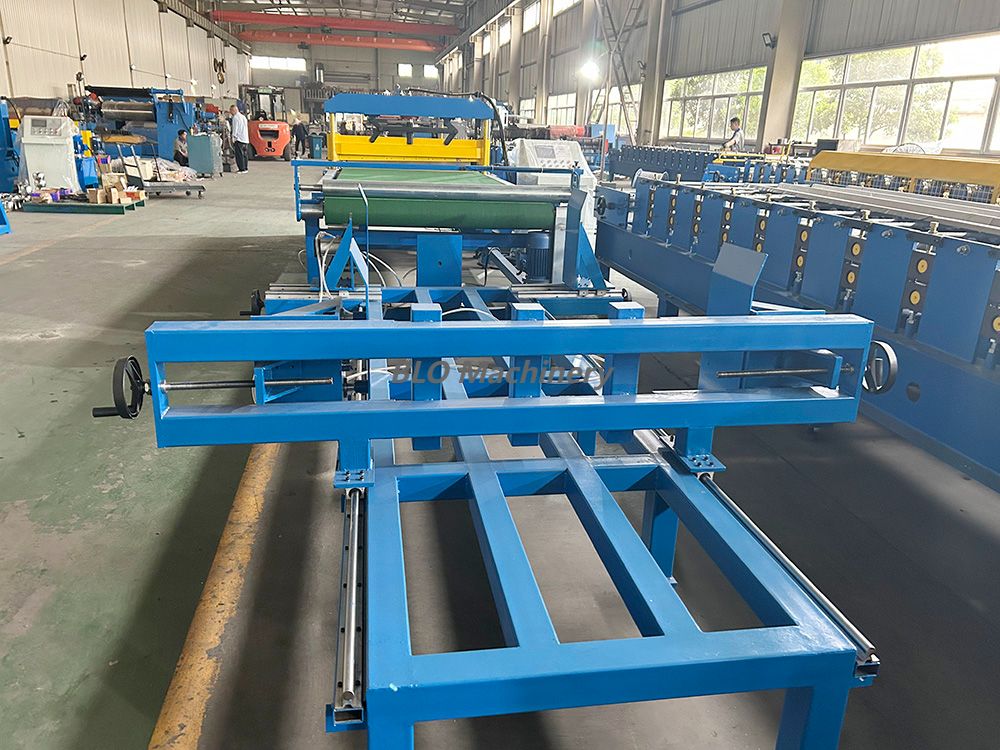

A Compact Metal Strip Cutting and Shearing Production Line is an integrated and space-efficient system designed to process large coils of metal into precise, flat strips of predetermined lengths. This automated line combines several key functions—uncoiling, straightening, guiding, feeding, and cutting—into a single, continuous workflow. It is engineered for high efficiency, accuracy, and minimal material waste, making it ideal for feeding stamping presses, blanking lines, or for producing ready-to-use metal blanks.
The production line sequentially performs the following operations:
1.Decoiler (Uncoiler):
This is the starting point of the line. It is a motorized stand that holds the heavy master coil of metal. It rotates in a controlled manner to pay out the metal strip, providing consistent tension and feed into the subsequent stages.
2.Guiding and Feeding Unit:
This unit consists of two critical subsystems:
Guiding (Edge Guiding): A sensor-based system that continuously monitors and corrects the lateral position of the moving strip. This ensures the material travels in a perfectly straight path, which is crucial for cutting accuracy and preventing material damage.
Feeding (Pinch Roll Feed): A set of powered rollers that grip the metal strip and push/pull it through the leveling machine with high precision. The feed length is programmable to determine the final length of each sheared piece.
3.Leveling (Material Straightening):

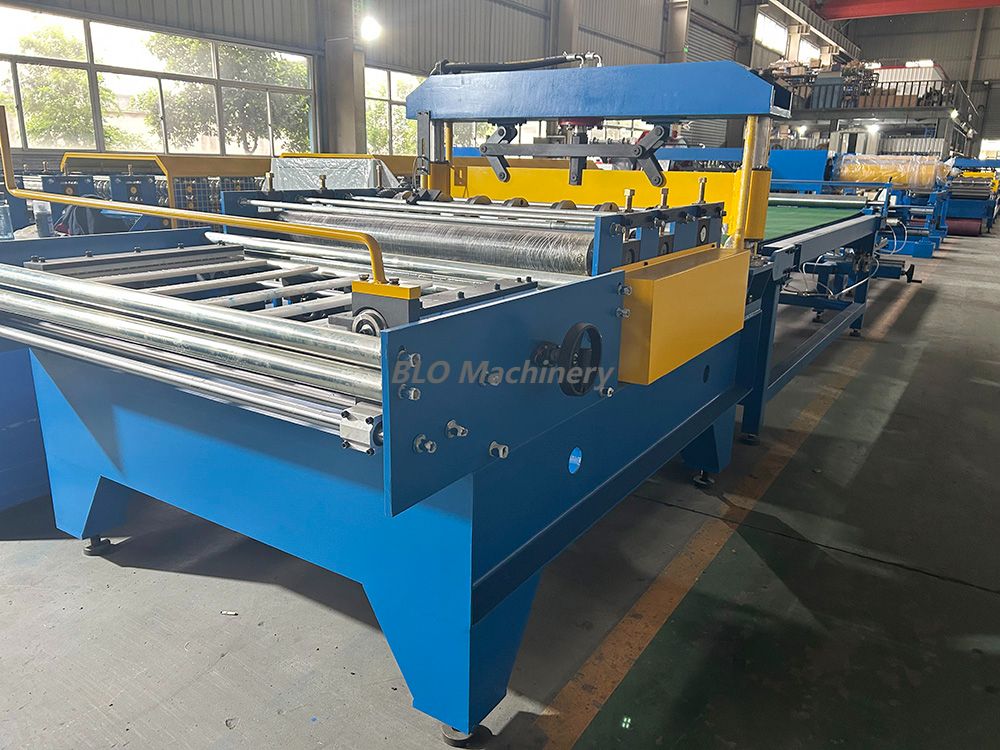

The metal strip passes through a Leveling Machine (or Flattener). This unit contains multiple sets of small-diameter rolls, arranged in an offset pattern. As the strip is pulled through these rolls, it is bent in alternating directions, which effectively removes any coil set, crossbow, or other internal stresses. The result is a perfectly flat and straight piece of metal.
4.Cutting to Strip (Slitting):
(Note: The term "cutting to strip" often implies a slitting process to create multiple narrower strips from a wide coil. If your line does this, the description is below. If it only cuts to length, this section can be omitted.)
A Slitting Machine is used here. It consists of two arbors holding pairs of circular hardened steel knives. The wide coil is slit longitudinally into multiple narrower strips according to the required widths. The slitters are spaced to match the desired strip dimensions.
5.Shearing (Cut-to-Length):
This is the final stage. The now-flat (and potentially slit) strip is fed into a Precision Flying Shear or Guillotine Shear. This shear moves synchronously with the strip, makes a clean, burr-minimized cut at the programmed length, and then returns to its start position. The result is a stack of finished, flat, and accurately sized metal blanks.
