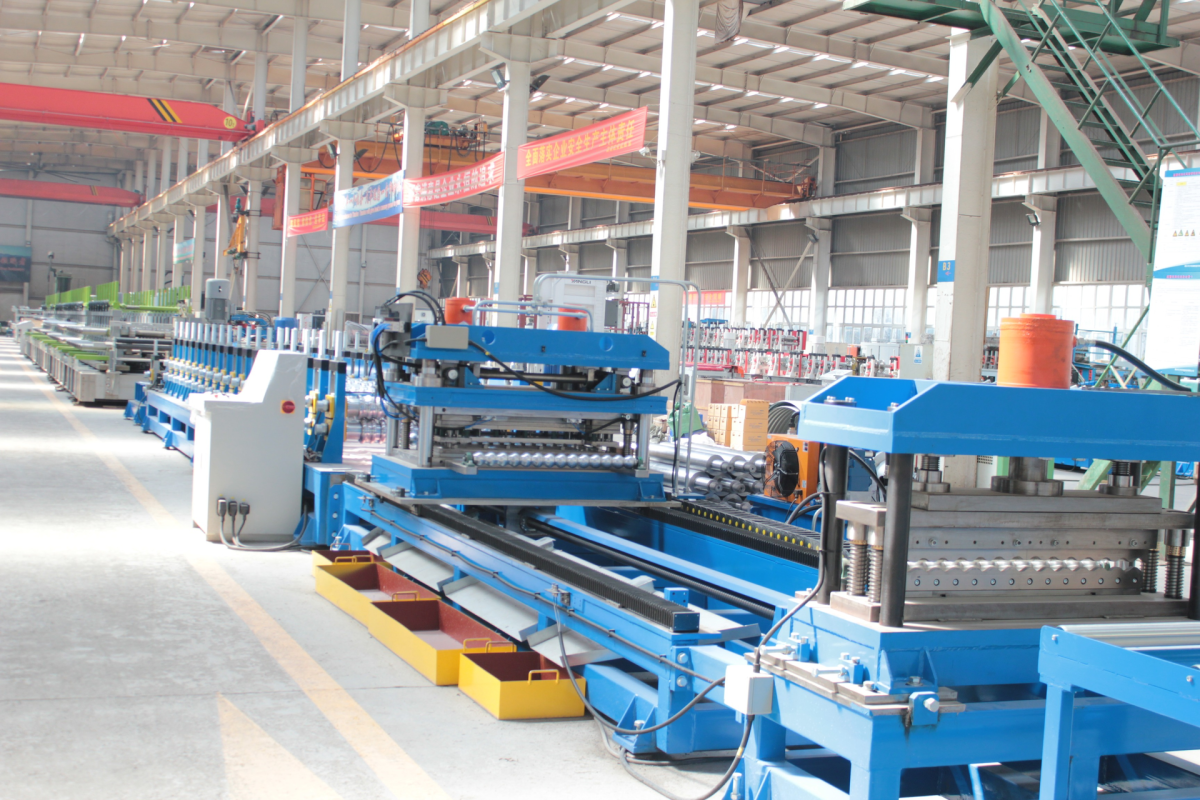

Grain Silo Panel Roll Forming Machine Line
Each component of the production line ensures stable and reliable running, durable, convenient operation & maintenance. Human-computer interface adjusts the arc radius. The equipment with high flexibility, could set the parameters to control punching positions and quantities, workpiece length, arc radius. Produced profiles with high precision. Corrugation size and curving radius arc with high accuracy uniformity, fully meet the multi-point connection assembly requirement.
NAME: | Slio Machine | THICKNESS: | 2.0-4.0mm |
SUITABLE MATERIAL: | Galvanized Steel | WIDTH OF THE RAW MATERIAL: | According Profile |
STEEL COIL WIDTH: | 1250mm | WORKING SPEED: | 0-15m/min |
HIGH LIGHT: | automatic roll forming machine，sheet metal roll forming machines | ||
Technology of Composition of machine

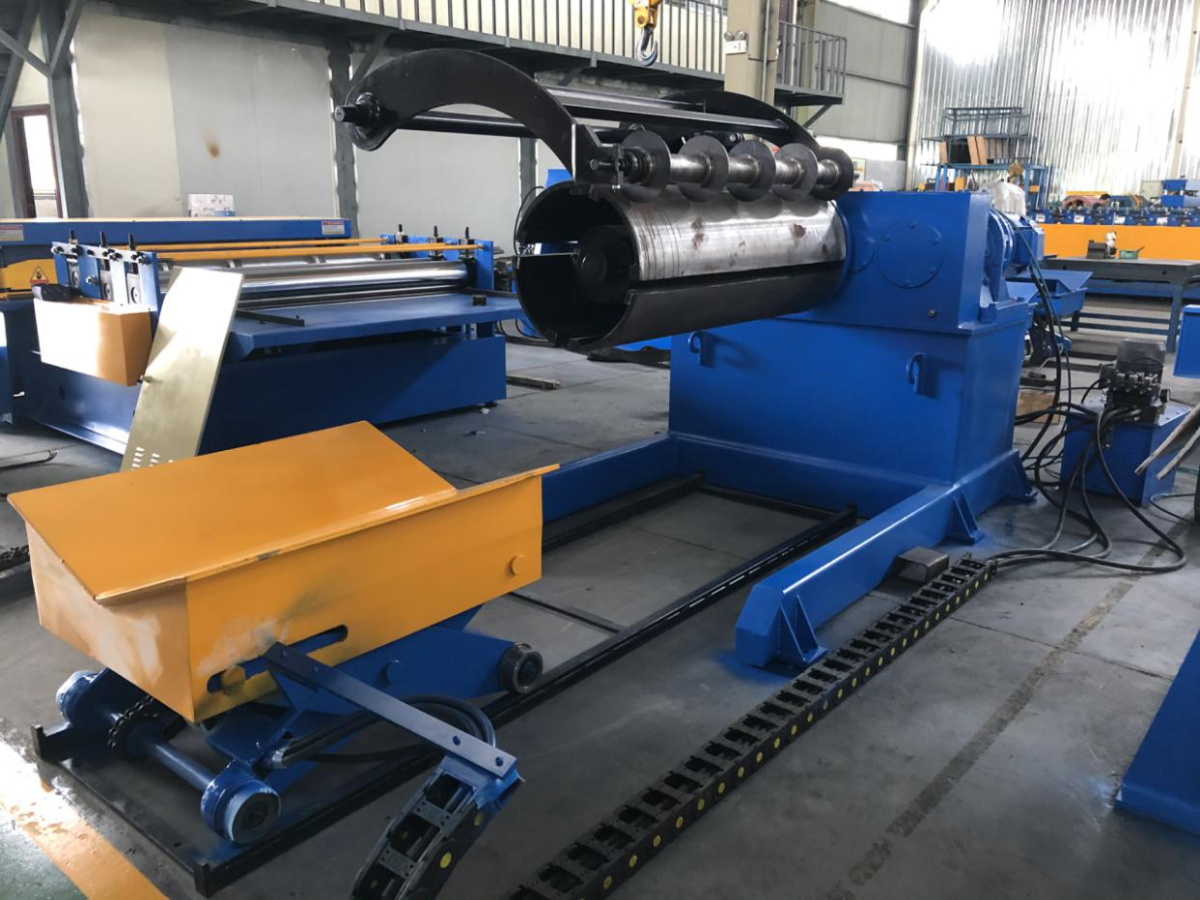

1: 10T hydraulic decoiler
Steel coil width: from 1250 mm;
Internal diameter of coil: variable, from 470 mm to 550 mm
Maximal out diameter:1600mm
Maximum coil weight: 10000 Kg;
Oil cylinder dia:120mm
Working speed: 0-15m/min adjustable
Main motor power: 7.5KW AC motor
Hydraulic power: 5.5kw
Forming Section
Material of the profile: GI
Thickness range:2.0-4.0mm
Maximum production speed: 0-10 meters per minute (for non-perforated profiles, excluding cutting and punching)
Main motor power:75kw
Roll station:18stations
Roller material:Gcr15 bearing material chrome plated surface with hardness 58-62 degree
Shaft diameter: ￠130mm material: SAE1045 with quenching and tempering
Transmission: by gear box
Machine base frame adopt H beam welding steel
Photo of each parts:
Track Punching and stop cutting:
Base on customer provide punching drawing, this machine need adopt hydraulic track punching system, the punching is NOT stop
The cutting is stop punching after non stop punching.
The punches and dollies will be CR-12, hardness HRC 58-62 and chrome coating.
The whole punching operation should be automated and controlled by a program installed in the PC which is located in the operator's console.
Hydraulic power: 30kw
Punching system: 4 sets
Cutting after forming: Cut the sheet after roll forming to required length
Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
Material of blade: CR12with heat treatment
Length measuring: Automatic length measuring
Transmission table
Connect from cutting to curving machine
Transmission power:2.5kw AC motor
Table size: length in 6m or 12m
Drive of transmission by 1.0inch single line chain
Transmission roller: ASTM1045 with chrome, diameter of roller is in 80mm
Color: blue or base on customer request
Quantity；one
Curving machine
Structure; adopt wall panel design, base frame adopt complete welding design to make sure the machine in strong
Main motor power: 15kw, AC motor
Machine Voltage, Frequency, Phase: 110 V, 60 Hz, 3Phase
Roll station: 4 rollers
Roller material: ASTM52100, chrome plated surface with chrome, CNC, HRC58-62 degree.
Diameter of shaft: 120mm
Driven by gear
Minimum radius to work: 24 "(600 mm)
Color: yellow and blue
