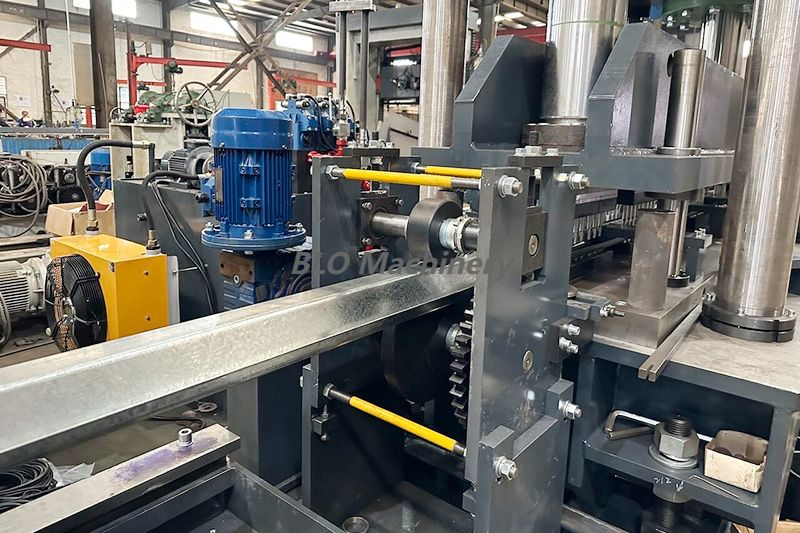

Silo Stiffener and Punching Roll Forming Machine describes its two main functions: creating profiles (stiffeners) and adding holes (punching).
Silo Stiffener: This refers to the final product—a metal profile, often a omega shaped channel, used to reinforce the walls of large silos. These stiffeners provide structural support and stability to the silo shell .
Roll Forming: This is the core process for shaping the metal. A coil of sheet metal is fed through a series of paired rollers (rolling stations). Each set of rollers gradually bends the metal until it reaches the desired cross-sectional shape, such as the Omega-shape for a stiffener. This is a continuous, high-efficiency method for producing long, uniform profiles.
Punching: This is an auxiliary function integrated into the production line. As the metal strip is being formed, a punching system creates precise holes, slots, or notches in the material. For silo stiffeners, these holes are likely used for assembly, bolting, or other service needs.
| Stag | Function | Descriptio |
1. Decoiling | Feeds Material | Holds and unwinds the large coil of sheet metal |
2. Guide &Levelin | Prepares Material | Ensures the metal strip is flat and straight before entering the forming section |
3. Roll Forming Stations | Shapes the Profile | A series of stations with rollers that progressively bend the metal into the final shape |
4. Punching Unit | Adds Holes | An integrated system that punches holes or slots into the profile at precise locations during production |
5. Cutting Syste | Cuts to Length | Cuts the continuously formed profile into predetermined lengths, often without stopping the line |
6. Control System | Manages Operations | A PLC system controls all parameters like dimensions, cut length, and punching patterns |
The main advantage of this integrated approach is high efficiency. It transforms a flat metal coil into finished, punched stiffeners in one continuous operation, minimizing manual handling and maximizing production speed and consistency .
Profile Range: The machine must be able to produce the specific size and shape of stiffener you need.
Material Specifications: It must be compatible with the type of steel (e.g., galvanized), its grade, and thickness.
Automation Level: Options range from basic control to fully integrated PLC systems for quick changeovers between different product specifications.
