A High-Speed Trapezoidal Sheet Roll Forming Machine is a high-efficiency, continuous production line that transforms metal coils into the familiar trapezoidal (or trapezium) profile sheets used extensively in construction and manufacturing. The "High-Speed" designation indicates it is engineered for maximum output, featuring robust drives, precision engineering, and automated systems to minimize downtime and maximize production rates.
These are the ubiquitous corrugated metal sheets, characterized by a series of parallel, trapezoidal-shaped ridges and valleys.
Common Names: Often called "Corrugated Sheets," "Roofing Sheets," or "Cladding Sheets."
Key Features: The trapezoidal shape provides excellent structural strength and rigidity, allowing the sheets to span longer distances between supports. The channels also facilitate water runoff.
Applications: Roofing and wall cladding for industrial buildings, warehouses, agricultural structures, and residential homes. Also used for flooring, partitions, and shipping containers
While the core components are similar to any roll forming machine, a high-speed model emphasizes durability, precision, and automation.
1.Heavy-Duty Decoiler with Automatic Feeding:
Often includes a cradle-type or double-arm decoiler for handling very heavy coils.
May feature an automatic coil loading system (e.g, a coil car) to reduce changeover time.
Equipped with a peeler and tension brake to ensure smooth, controlled uncoiling.
2.High-Precision Leveling System:
A multi-roll (e.g., 7- or 9-roll) leveling machine is critical. It removes any coil set, crossbow, and edge wave from the material before forming.
On a high-speed machine, this unit is robustly built to handle the stress and prevent material flutter at high velocities.

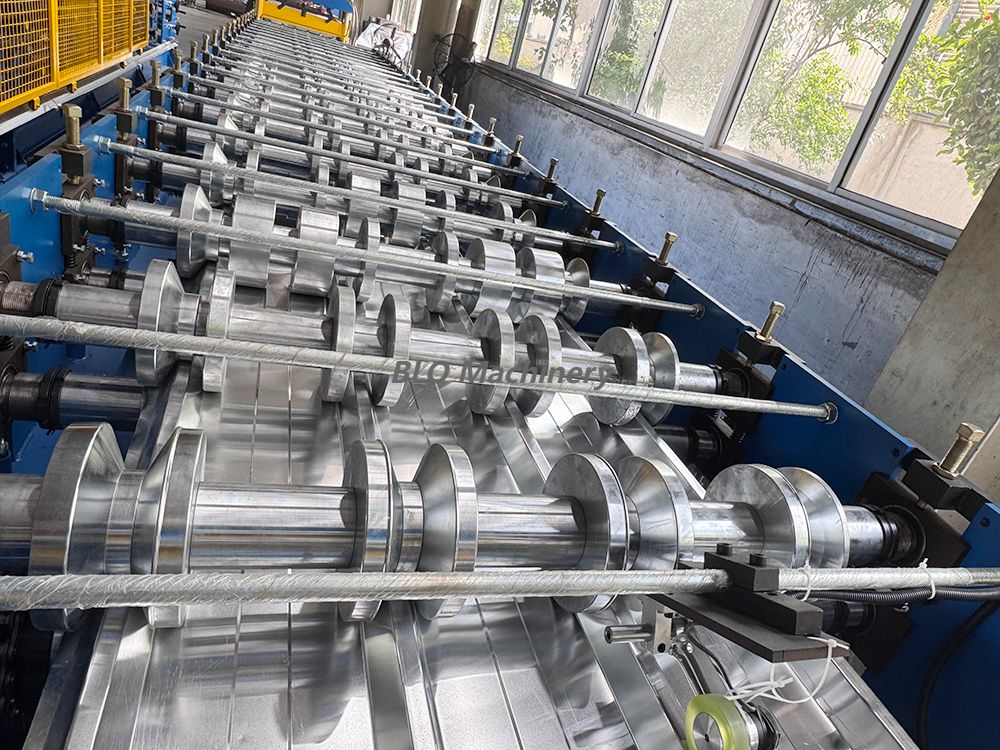

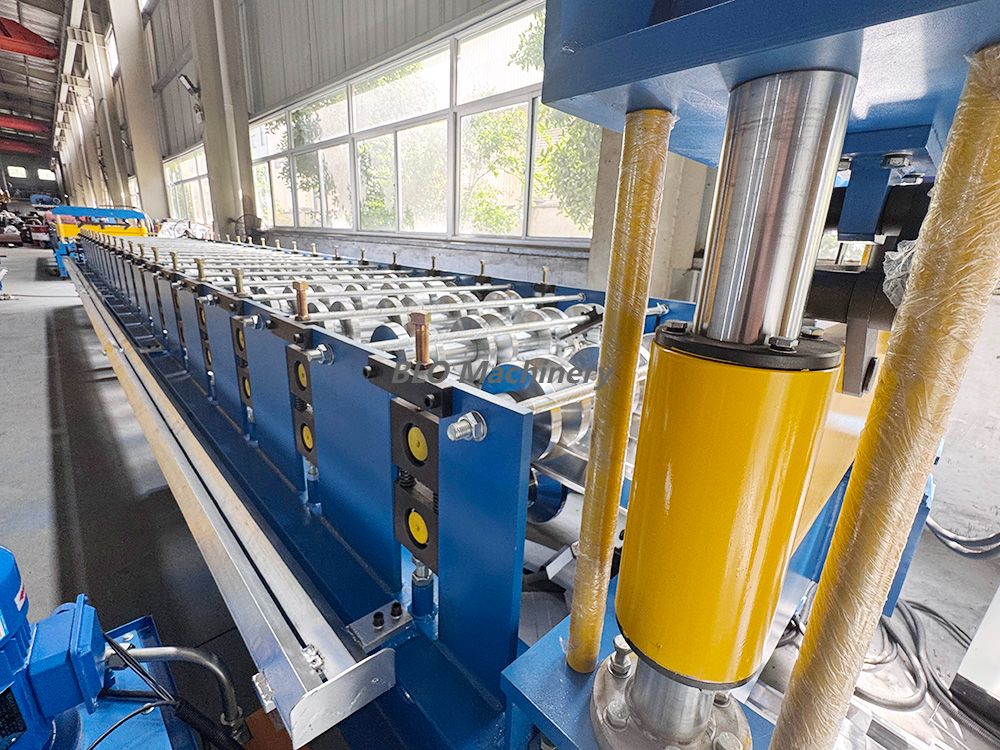

3.The Forming Station (The Heart of the Machine):
Number of Stands: Typically has a higher number of forming stands (e.g., 18-25+) for more gradual, precise forming. This is crucial for high speed as it reduces stress on the material and the drive system.
Roller Design: Rolls are made from high-grade alloy steel (e.g., 42CrMo), hardened, and precision-ground. They are often chrome-plated to reduce friction, prevent material scratching (galvanizing pickup), and extend lifespan.
Shafts & Housings: Shafts are larger in diameter and made from high-tensile steel. Housings are heavily reinforced to withstand the high torsional forces and prevent flexing, ensuring profile consistency.

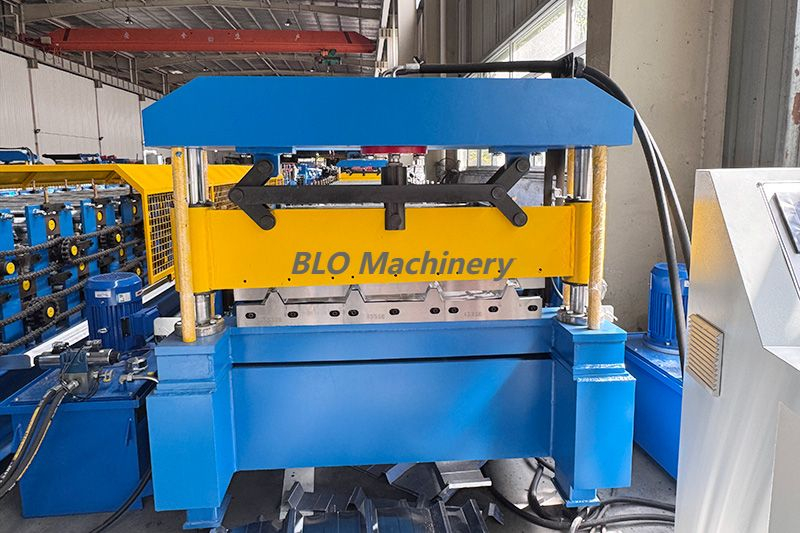

4.High-Speed Cutting System:
This is a key differentiator. It almost exclusively uses a Servo-Driven Flying Cut-Off system.
How it works: The cutting unit (with a hydraulic or pneumatic shear) accelerates to match the exact speed of the moving sheet, makes a clean, burr-free cut, and then rapidly returns to its starting position. This happens without stopping the line, which is essential for high throughput.
5.Output Conveyor & Automatic Stacking:
A powered conveyor with multiple rollers supports the sheet.
An automatic, programmable stacking system counts the sheets and stacks them into precise, uniform bundles. This eliminates manual labor and is a major contributor to overall line speed.
6.Advanced PLC Control System:
The central nervous system. It synchronizes all components—decoiler, leveler, punch, forming stands, and cutter.
Features a user-friendly HMI (Human-Machine Interface) touchscreen to input sheet length, quantity, and production speed.
Can store hundreds of different profile recipes for quick recall.
In summary, a High-Speed Trapezoidal Sheet Roll Forming Machine is a capital investment for high-volume manufacturers, designed to deliver maximum productivity, superior quality, and a rapid return on investment through its fully automated, high-velocity operation.
