A Roof Ridge Cap Roll Forming Machine is a continuous cold-roll forming system that automatically shapes flat metal coils into long, consistent ridge caps. The ridge cap is the final, capping piece installed along the peak (ridge) of a sloped roof. Its primary functions are to:
Weatherproof the ridge by sealing the gap between the two opposing roof planes.
Provide Ventilation (in many designs) to allow hot, moist air to escape from the attic.
Provide a Finished Aesthetic that complements the roof's profile and style.
The machine is a coordinated system of stations. Here’s a breakdown from start to finish:
1. Decoiler / Uncoiler:
Technology: A heavy-duty spindle with a tension brake. Can be manual (cantilever) or motor-driven for heavier coils.
Function: To hold and steadily feed the large metal coil into the machine without creating slack or undue tension.
2. Infeed Guide & Flattener:
Technology: A series of precision rollers that correct any coil curvature or "memory" from being wound.
Function: Ensures the metal enters the forming section perfectly flat and aligned, which is critical for a symmetrical final product and stable machine operation.
3. Pre-Punching / Notching Station (Optional but Common):
Technology: A synchronized pneumatic or servo-driven punching unit.
Function: To punch vent holes, pilot holes for screws, or create special notches before the metal is formed into its final shape. This is far easier and more accurate than post-forming punching.
4. Roll Forming Station (The Core Technology):
Technology: A series of tandem stands, each containing a set of precision-machined, hardened steel rollers. Each stand performs an incremental, gradual bend.
Function: To progressively shape the flat sheet into the complex profile of a ridge cap through a series of 10-20 forming stages. The roller design (the "tooling") is specific to the ridge cap profile (e.g., standard, Vented, Hip Roll).
5. Driving System:
Technology: An electric motor (often with a variable frequency drive - VFD) connected to the main roller shafts via gears, chains, or timing belts.
Function: Provides the power to pull the metal through all the forming stations consistently.

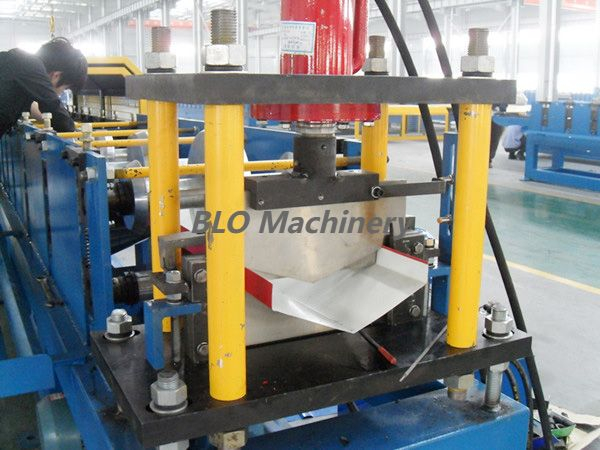

6. Post-Forming Profiling / Bending Station:
Technology: Additional forming stations or specialized bending units after the main profile is shaped.
Function: To create the final "legs" or bends that allow the ridge cap to clip over or sit properly on the roof panels. This is where the final geometry is locked in.

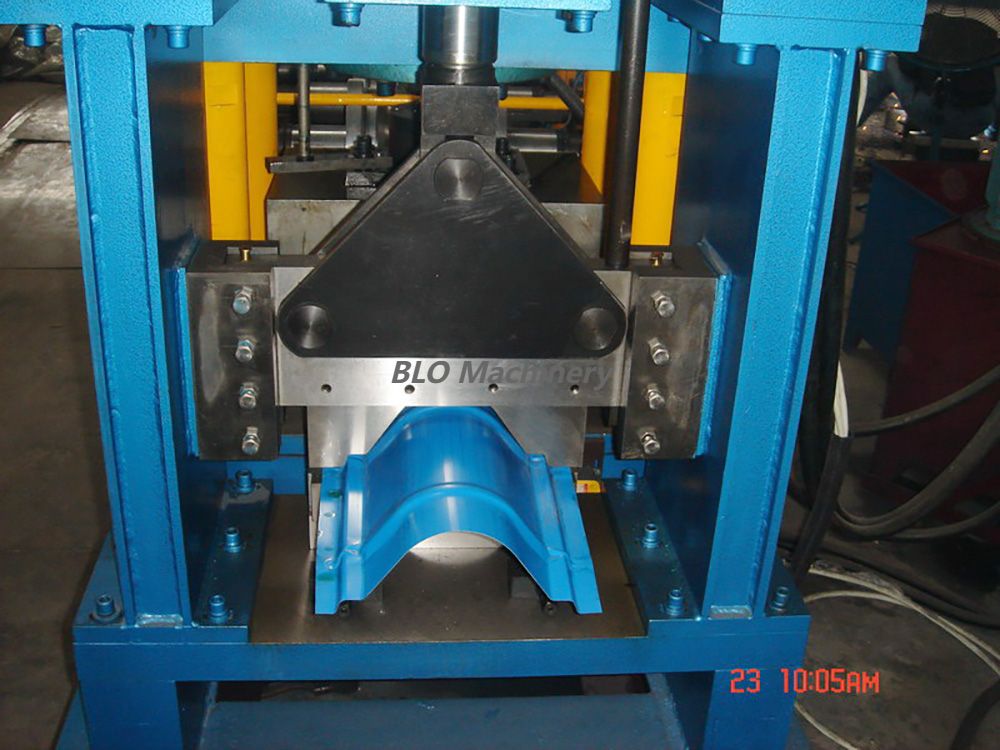

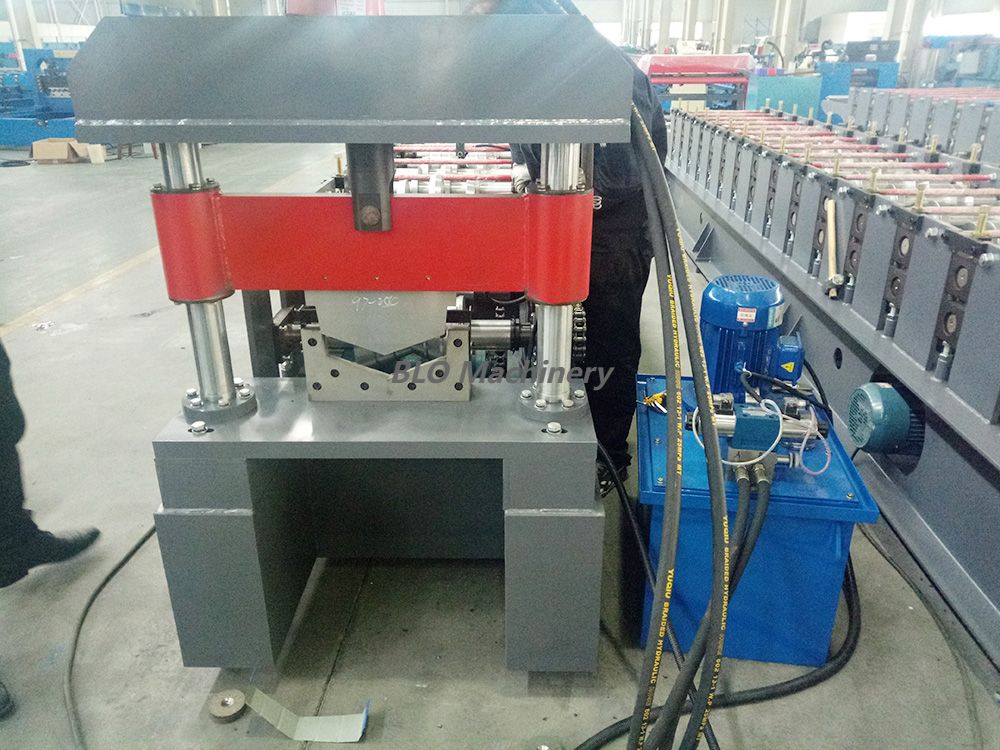

7. Cutting Mechanism:
Technology: Almost universally a Flying Cut-Off system.
A hydraulic or servo-driven cutting head moves synchronously with the moving ridge cap.
It clamps onto the cap, makes a clean cut (via a circular saw blade or shear), and returns to its start position.
Function: To cut the continuous ridge cap to pre-set lengths without stopping the machine, ensuring high efficiency and a burr-free end.
8. Control System & HMI:
Technology: A Programmable Logic Controller (PLC) and a Human-Machine Interface (HMI) touchscreen.
Function: The brain of the machine. The operator inputs length, quantity, and hole spacing. The PLC controls the decoiler, drive motor, punching unit, and flying cut-off with extreme precision.
9. Output Table & Support:
Technology: A series of free-rolling conveyor rollers or a support frame.
Function: To catch and support the finished ridge caps as they exit, preventing deformation or scratching.
In conclusion, the Roof Ridge Cap Roll Forming Machine is a sophisticated piece of fabrication technology that leverages precision mechanics, automation, and smart controls to transform a basic coil of metal into a critical, high-quality roofing component with remarkable efficiency.
