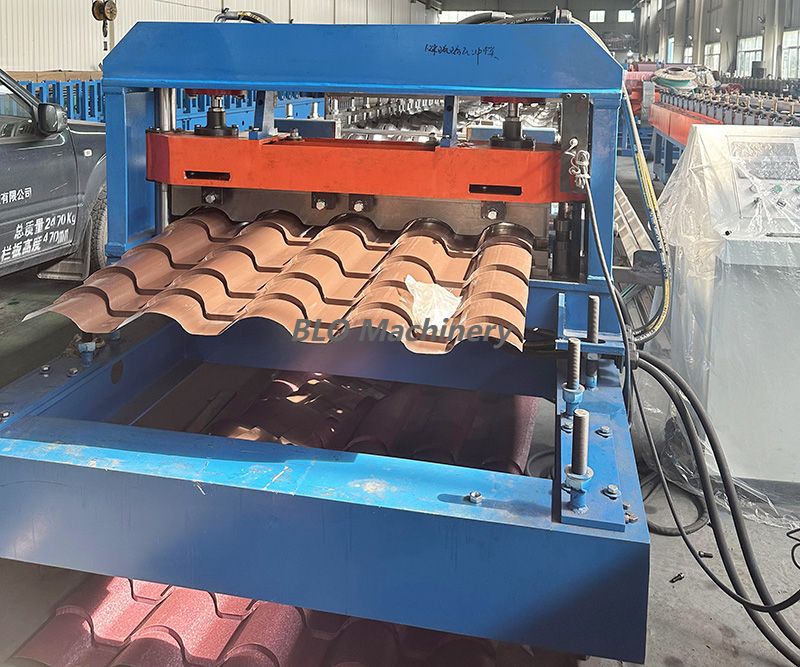

The Machine's Core Function: The Roll Forming Process
The machine uses a process called roll forming. This is a continuous, bending operation where a flat strip of metal passes through a series of roller dies (stations), each of which progressively bends the metal until the desired cross-sectional profile is achieved.
1.Uncoiler / Pay-off Stand: Holds the large, heavy coil of pre-painted (glazed) metal and feeds it into the machine smoothly.
2.Entry Guide: Ensures the metal strip enters the first set of rolls correctly aligned.

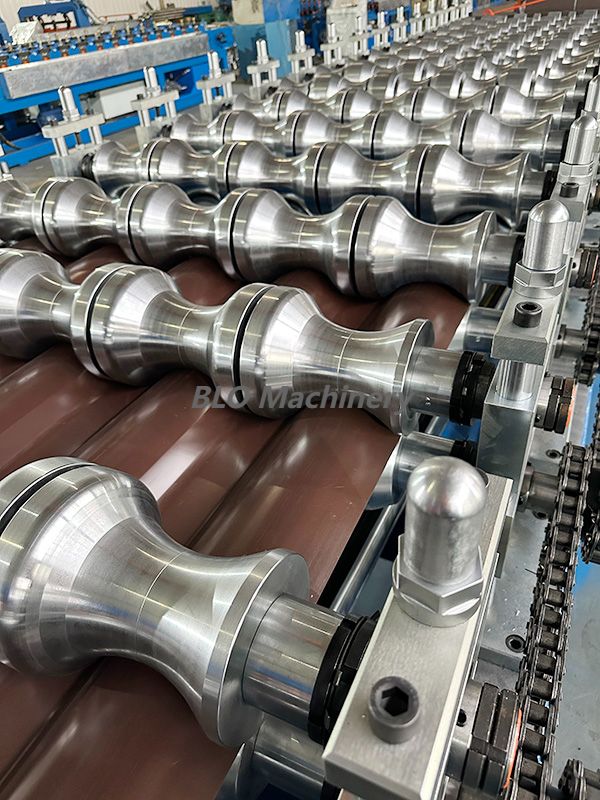

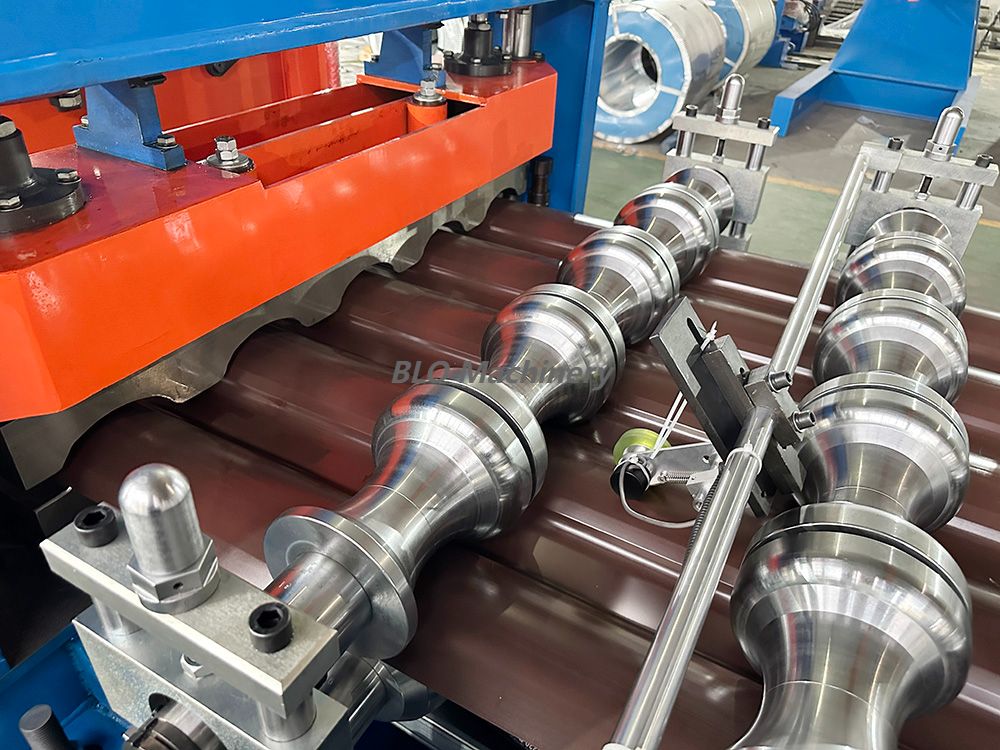

3.Roll Forming Stations: The heart of the machine. Each station has a set of precision-engineered rollers that make a specific, incremental bend. A simple profile might need 10-12 stations, while a complex one could have 20 or more.

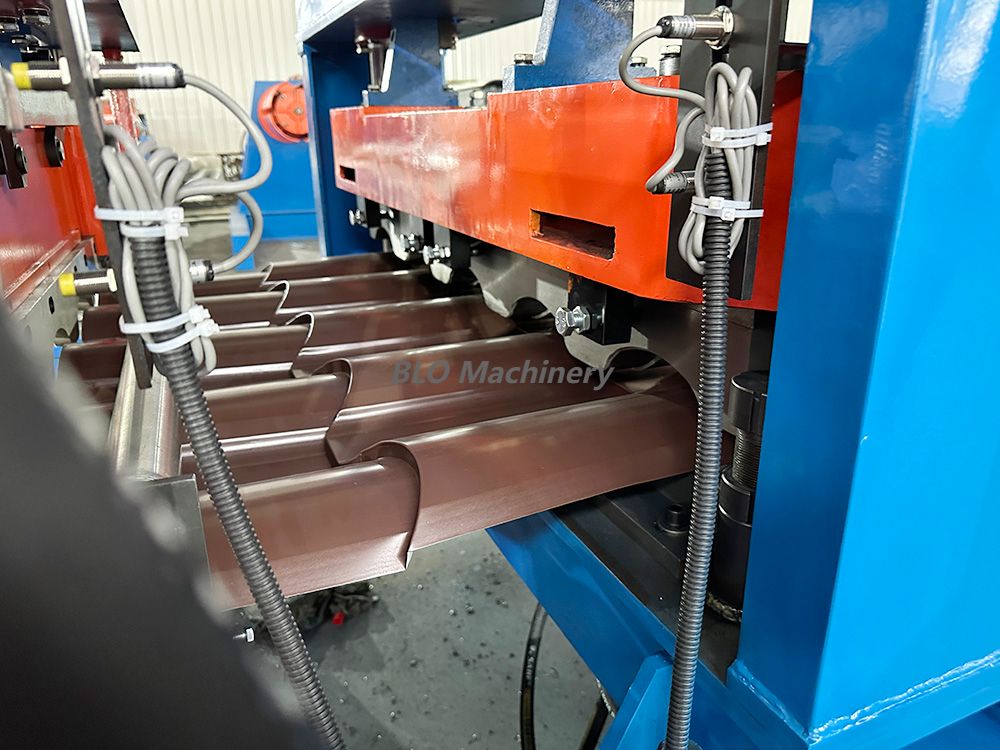

4.Cutting System: Once the metal is fully formed into the profile, it is cut to the required length. This is typically done by a:
5.Flying Cut-Off: A saw or shear that moves synchronously with the moving panel to make a clean, square cut without stopping the production line.
6.Output Table / Run-Out Table: Supports and conveys the finished, cut-to-length panels out of the machine for stacking and packaging.
7.Control System (PLC): A computerized programmable logic controller that automates the entire process—speed, cutting length, and monitoring for faults.
High Efficiency & Speed: It produces panels continuously at high linear speeds (e.g., 20-50 meters per minute), making it ideal for large-scale projects.
Consistency & Quality: Every panel produced is identical, with precise dimensions and a perfect profile, ensuring consistent performance and appearance on the building.
Material Efficiency: It generates very little waste compared to other metal shaping methods, as the entire coil is used and cut to exact project lengths.
Strength: The roll-forming process work-hardens the metal at the bends, creating a structurally strong panel.
Automation: The process is highly automated, reducing labor costs and the potential for human error.
In essence, a Glazed Tile Roll Forming Machine is a high-speed, automated production line that transforms rolls of pre-finished, glazed metal into long, strong, and consistent panels with a profile that replicates the look of traditional roofing tiles. It is a key technology that enables the efficient and cost-effective use of modern glazed tile systems in architecture.
