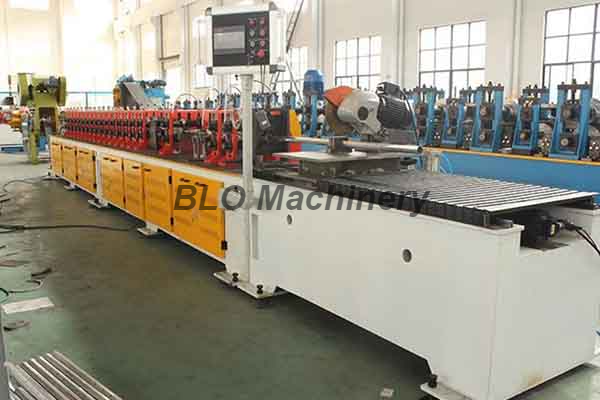

70mm Round Tube Roll Forming Machine

Availability:
Quantity:

燕尾槽管 70mm

Material thickness:0.5-1.2mm

 Working Flow

prodcution progress

Decoiler ---puching hole---Feeding guide ---Roll forming ---Servo tracking sawing---Cutting---PLC---Run-out table

Technical parameters

1.number of forming steps:21stands

10.Safety switches from the front to end of the machine.

2.material of shaft:CGr15# HRC58-62° ¢200

11.Thickness of material:0.5-1.2mm

3.main motor power:11kW

12.Touch screen:Delta brand

4.The speed of forming: 6m/min

13. PLC:  Delta brand

5.Drive mode: chain drive

14.Encode:OMRON brand

6.Power:11kw

15.Inverter:  Delta brand

7.Bearing: FAG brand Germany

16.Cutter:Servo tracking sawing

8.Chain: Gold brand, China

17.Machine weight: about 7.5ton

9.Color of the machine: to be confirmed later

18.Machine size:12000*1400*1000mm
