Windproof Shutter Door Forming Machine

Availability:
Quantity:

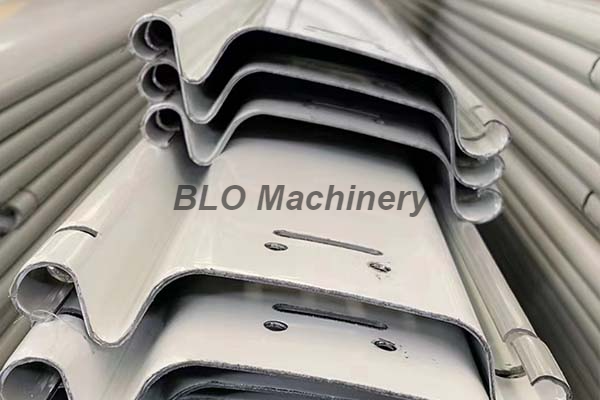

Profiles of Metal Rolling Shutter Door 抗风卷帘门 1

Un-coiler ---- Sheet guiding---Roll forming ---Punching --Hydraulic  cutting--- PLC--- Run out table



Material thickness:0.5-1.2mm


Main component of the line:


NO. name quantity
Main roll former
1 Un-coiler (2 tons ) MANUAL 1
2 roll former 1
3 Punching 1
4 Hydraulic cutter 1
5 PLC control cabinet 1
6

Output table with rollers (6meters)

1


TECHNICAL DETAILS

Un-coiler

1. Capacity: 2 tons

2. Material: #45 steel quenched

3. Inner diameter: 410~ 580mm


Main roll former

1. Stations: 15

2. Rollers material: CR 15; HRC 60. Chrome coated: 0.03~0.05mm. The Strength in Mpa: 70 TON, 800 MPA

3. Shaft material: Diameter: 50mm, material is #45 steel. Quenched: hot treatment. The strength of the Main Shaft in Mpa:70 tons, 650MPA

4. Bearing brand: FAG Germany

5. Main Motor: 5.5 KW, 380V, 50HZ


PLC Control Cabinet:

1. Touch screen brand: DELTA

2. PLC brand: DELTA

3. Inverter brand: DELTA

4. Main components for low pressure electricity: Schneider Germany

5. Encoder: Omron


Output table

1. Length: 6 meters

2. Drive type: Rollers
