Bottom Rolling Shutters Door Forming Machines


Material thickness:0.6-0.8mm

Production Process:

Un-coiler ---Roll forming ---Hydraulic Cutting--- PLC --- Run out table

Un-coiler     Manual 2ton

Main forming

1.Forming stands              24 rollers

2.Working speed              10-15m/min

3.Diameter of shaft           Φ80mm

4.Gr15 Material of rollers:      Mould steel

5.PLC: DELTA  ±0.5mm

6.Power: 11kw

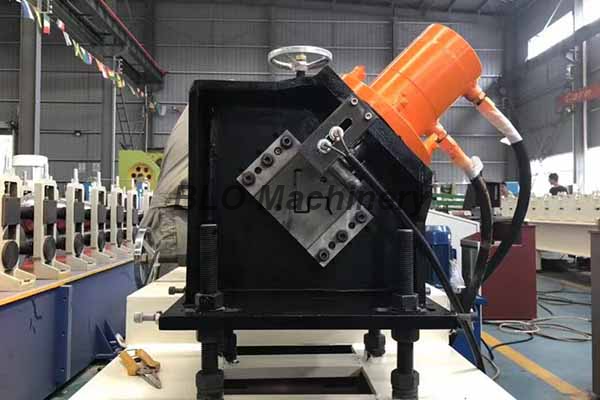

7.Hydraulic cutting:flying saw

8.Drive:Gear box transmiss
