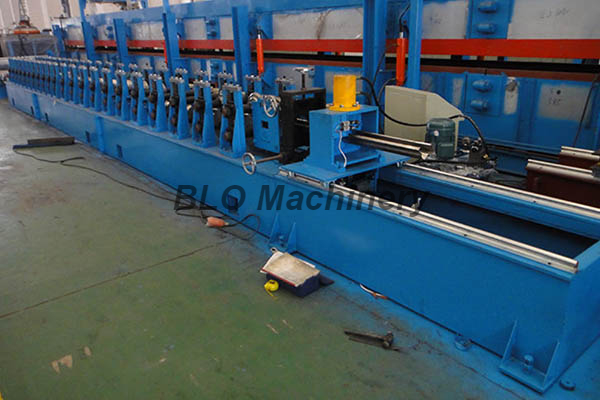

Door Frame Roll Forming Machine

PRODUCT DESCRIPTION

Technical process  ：Uncoiler---Feeding guide---Roll forming---Hydraulic cutting---Run out table

TECHNICAL DETAILS

1.Un-coiler

Capacity: 3 tons

Material: #45 steel quenched

Maximum inner diameter: 570mm

Manual un-coiler

Maximum width of coil: 350

L*W*H: 1200mm*920mm*1300mm

2.Main roll former

Stations: 22 for window frame

Rollers material: CR 15, HRC 60. Chrome coated: 0.03-0.05mm, Strength (MPA): 70 tons, 800 MPA

Shaft: diameter 55mm, material is Cr40 steel. Quenched hot treatment. Strength of the main shaft (MPA): 70 tons, 650MPA

Bearing brand: FAG Germany

Main motor: 11KW,415V, 50HZ, 3 Phases AC Motor (OMD Brand)

Transmission by chain

Station material: wall board

Machine is equipped with cooling system

3.PLC control cabinet

Touch screen brand: Delta

PLC brand: Delta

Inverter brand: Delta

Main components for low pressure electricity: Schneider Germany

Encoder: Omron

4.Output table

Length: 6 meters

Drive type: rollers

5.Cutting platform

Cutting type: hydraulic cutting

Motor: 4KW, 415V, 50HZ, 3 Phases

The material of knives: Cr12

Tolerance of length: ±0.5mm

6.Input material

Material: Color coated plate

Galvanized steel: 0.55-0.6mm

7.Dimension (L*W*H)

15m*1.5m*1.2m

8.Working speed

8-10m/min (including cutting)
