Lower Shutters Box Roll Forming Machines

Material thickness:0.7-1.0mm

Production Process:

Un-coiler ---Roll forming ---Hydraulic Cutting--- PLC --- Run out table

Main parts of production line

 Un-coiler     Manual 5ton

 Main forming

1.Forming stands              16/7 rollers

2.Working speed              5-8m/min

3.Diameter of shaft           Φ80mm

4.Gr15 Material of rollers:      Mould steel

5.PLC: DELTA  ±0.5mm

6.Power: 380V, 50HZ，7.5kw

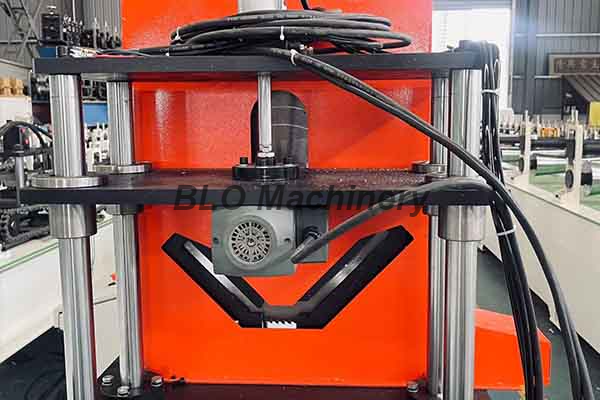

7.Hydraulic cutting:flying saw

8.Hydraulic power: 4 KW

9.Drive:Chain

  10.Machine size:13000*1200*1000mm
