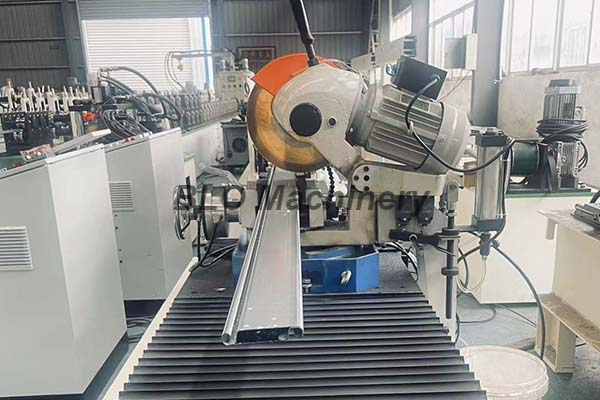

Metal Shutter Door Roll Forming Machine

Material thickness:0.5-1.2mm

Un-coiler ---- Sheet guiding---Roll forming ---Punching --Hydraulic  cutting--- PLC--- Run out table

Main component of the line:

TECHNICAL DETAILS

Un-coiler

1. Capacity: 2 tons

2. Material: #45 steel quenched

3. Inner diameter: 410~ 580mm

Main roll former

1. Stations: 15

2. Rollers material: CR 15; HRC 60. Chrome coated: 0.03~0.05mm. The Strength in Mpa: 70 TON, 800 MPA

3. Shaft material: Diameter: 50mm, material is #45 steel. Quenched: hot treatment. The strength of the Main Shaft in Mpa:70 tons, 650MPA

4. Bearing brand: FAG Germany

5. Main Motor: 5.5 KW, 380V, 50HZ

PLC Control Cabinet:

1. Touch screen brand: DELTA

2. PLC brand: DELTA

3. Inverter brand: DELTA

4. Main components for low pressure electricity: Schneider Germany

5. Encoder: Omron

Output table

1. Length: 6 meters

2. Drive type: Rollers
