Processing:
Decoiler ---Feeding guide ---Levelling ---Roll forming ---Cooling installation--- Stop cutting
---PLC---Run-out table
Main component of the line:
NO. | Name |
Main components of the line | |
1 | Manual decoiler |
2 | Automatic feeder and leveller |
3 | Roll forming machine |
4 | PLC Electrical control system(Delta system) |
Total: FOB USD35500 | |
1.Manual Hydraulic Un-coiler
| Type: Manual |
Loading capacity: max. 3 ton | |
Drum open/close distance : ø483 ～ ø520 mm |
2.Automatic feeder and leveller

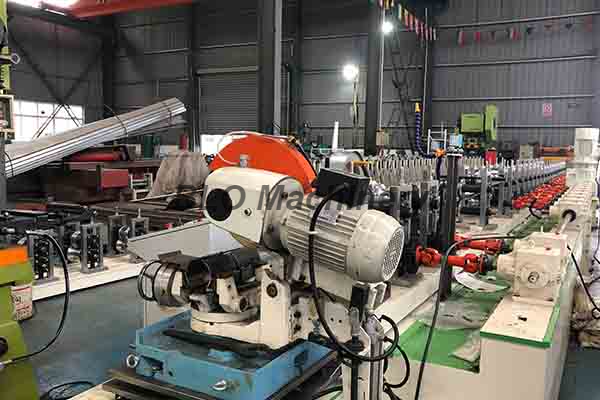

3.Roll forming machine
| A. number of forming steps：26stands B.material of shaft：CGr15# HRC58-62°C. main motor power：11kW D. The speed of forming: 6m/min E. Drive mode:Gearbox universal joint drive F. Cutter power:4kw G. Bearing: FAG brand Germany H. Chain: Gold brand, China I.Color of the machine: to be confirmed later J. Safety switches from the front to end of the machine. k. Thickness of material:0.6-0.65mm L. Touch screen：Delta brand M. PLC: Delta brand N. Encode：OMRON brand O. Inverter: Delta brand P. Tube length:7m Q.Machine weight: about 8ton I.Machine size:15000*1500*1200mm |
4.Control & Touch screen
| Control the quantity, cut to length automatically; Two options for cut-to-length control PLC, Touch Screen, Converter, Encoder, etc
|
Processing:
Decoiler ---Feeding guide ---Levelling ---Roll forming ---Cooling installation--- Stop cutting
---PLC---Run-out table
Main component of the line:
NO. | Name |
Main components of the line | |
1 | Manual decoiler |
2 | Automatic feeder and leveller |
3 | Roll forming machine |
4 | PLC Electrical control system(Delta system) |
Total: FOB USD35500 | |
1.Manual Hydraulic Un-coiler
| Type: Manual |
Loading capacity: max. 3 ton | |
Drum open/close distance : ø483 ～ ø520 mm |
2.Automatic feeder and leveller
3.Roll forming machine
| A. number of forming steps：26stands B.material of shaft：CGr15# HRC58-62°C. main motor power：11kW D. The speed of forming: 6m/min E. Drive mode:Gearbox universal joint drive F. Cutter power:4kw G. Bearing: FAG brand Germany H. Chain: Gold brand, China I.Color of the machine: to be confirmed later J. Safety switches from the front to end of the machine. k. Thickness of material:0.6-0.65mm L. Touch screen：Delta brand M. PLC: Delta brand N. Encode：OMRON brand O. Inverter: Delta brand P. Tube length:7m Q.Machine weight: about 8ton I.Machine size:15000*1500*1200mm |
4.Control & Touch screen
| Control the quantity, cut to length automatically; Two options for cut-to-length control PLC, Touch Screen, Converter, Encoder, etc
|
