A Photovoltaic Bracket Forming Machine (also called a PV Bracket Roll Former or Solar Panel Mounting Bracket Roll Forming Machine) is a specialized roll-forming machine used in the solar energy industry to make the metal support brackets, rails or channels that mount, support, or frame solar photovoltaic (PV) modules. These brackets help fix the solar panels to roofs, ground mounts, concrete, etc., often needing strength, precise holes, corrosion resistance, etc.
Takes a coil or strip of metal (steel, galvanized steel, sometimes aluminum or cold-rolled steel).

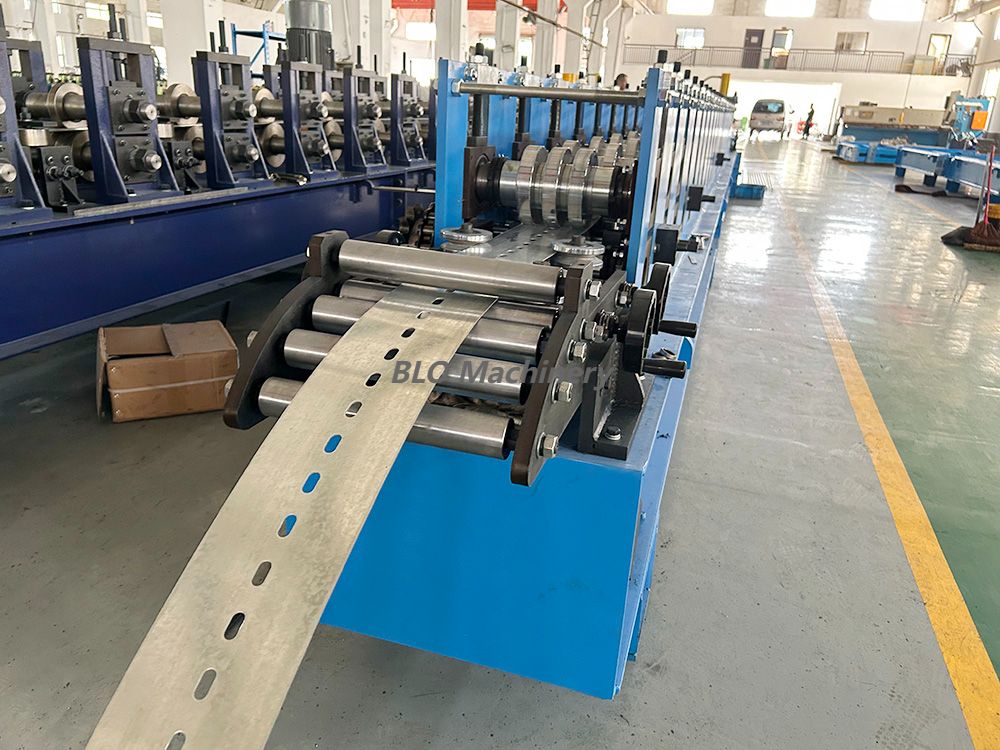

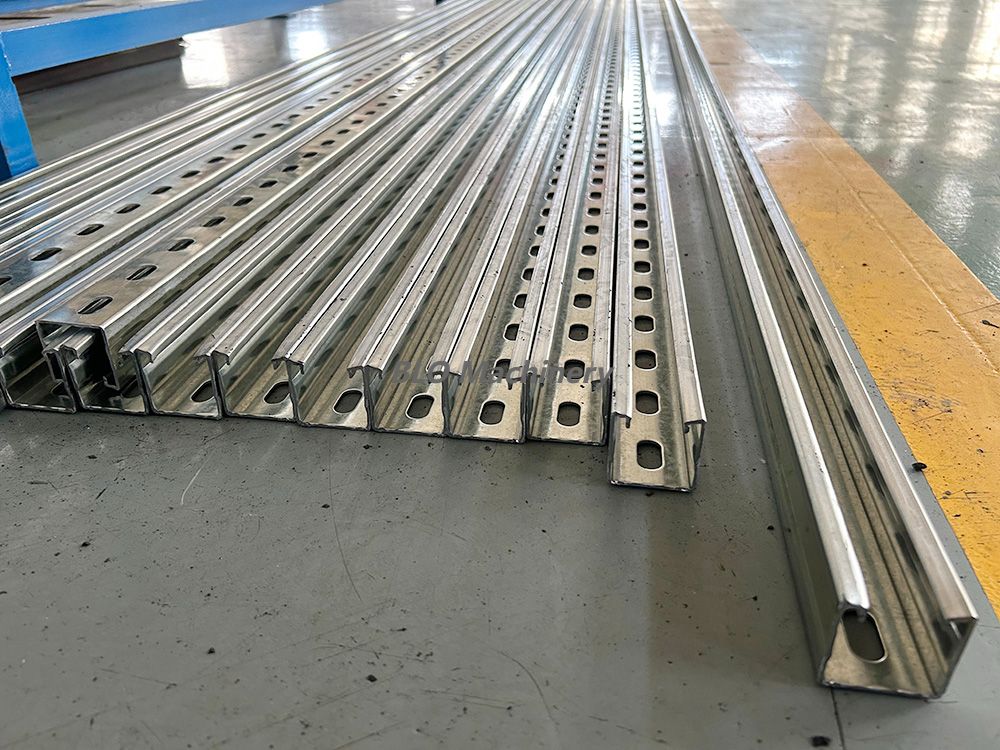

Levels (flattens) the strip, then feeds it through roll forming stations (rollers) that progressively bend the metal into a channel or bracket cross‐section (often “C”, “Z”, or custom profile).
Optionally punches/dies holes or slots (for bolts, fasteners).
Cuts the formed profile to length (can be stop cutting, post cutting, or flying cut).
Often stacks or packages the finished brackets.
Designed to make many pieces with consistency, speed, and precision, because thousands of brackets are needed in large solar farms or installations.
Typical components/modules include:
Component | Function |
Decoller (uncoiler) | Holds the metal coil and unwinds it. Could be hydraulic or manual. |
Leveler / Straightener | Removes any coil deformation (coil set,bends) so forming is accurate. |
Feeding / Guiding table | Feeds precisely,aligns material into the forming line. |

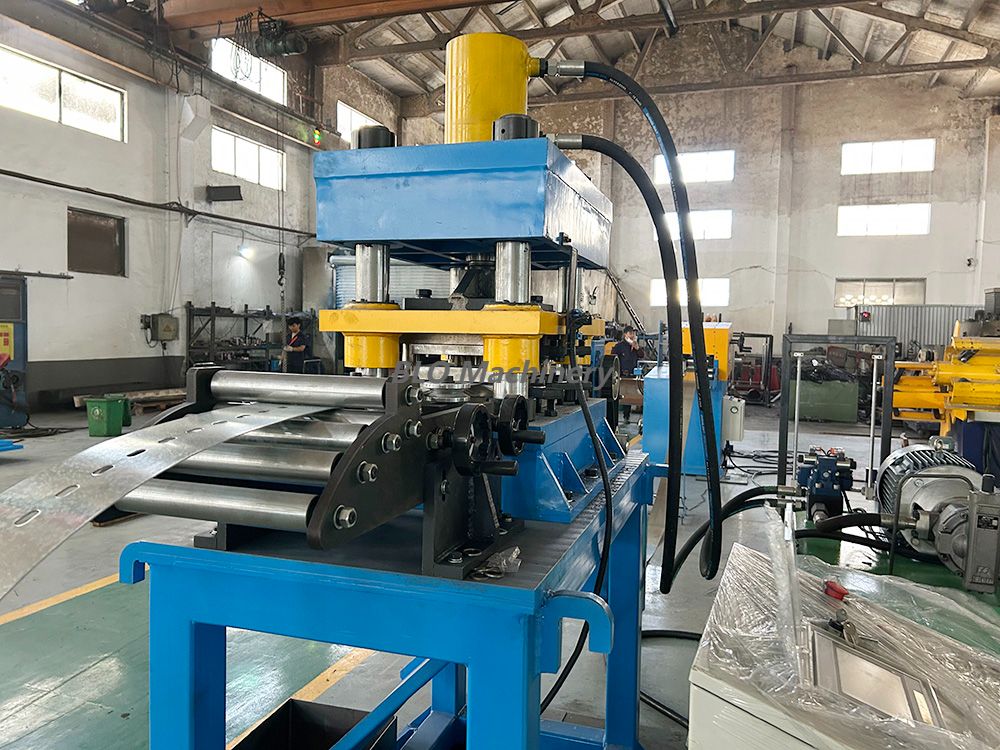

Punching station(s) | To punch holes or slots at predetermined intervals. May do pre-punching (before forming) or post-punching. |

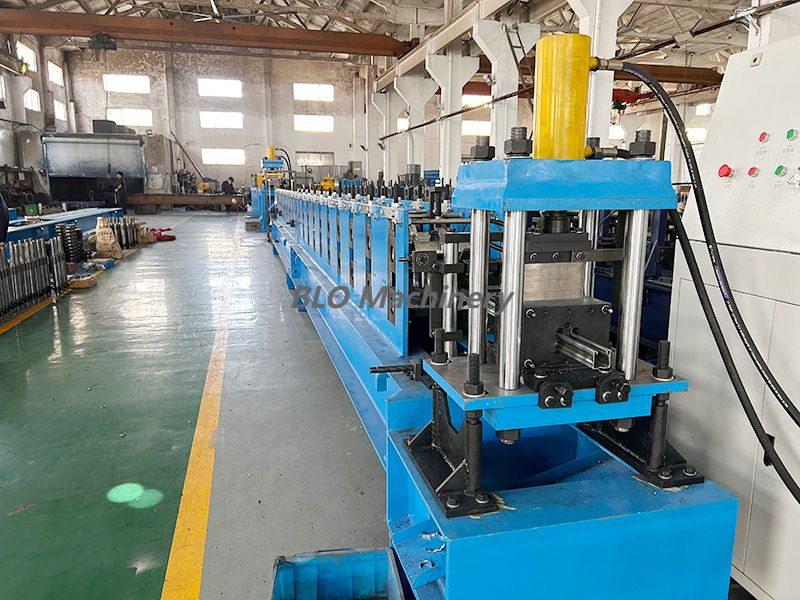

Roll forming section | Series of roll stands,each bending a little more until final profile is achieved. |
Cutting device | Cuts the profiles to specified lengths. Could be fixed shear,post-cutting,or a “flying” (continuous) cutter. |
Control system / PLC / HMI | Used to set lengths,counts,control speed,coordinate punching &cutting,monitor performance. |
Hydraulic / Electric Power Units | Powers the punches,cutter,maybe the decoller,drives,etc. |
Output / Stacker / Packaging | Tables or automats,1 stacking,packaging for finished brackets. |
Typical Technical Specification,These vary depending on how large/strong the bracket needs to be, production scale, etc. Here are common ranges:
Spec | Common Values |
Material thickness | ~1.0–5.0 mm depending on strength required. Many machines do ~1.5–3.0 mm steel. |
Material types | Galvanized steel,cold-rolled steel,hot-rolled,sometimes aluminum. |
Yield strength of material | Often ~230–550 MPa,depending on steel grade. |
Forming speed | Something like 10–40 m/min depending on thickness,complexity,and cutting method. |
Number of forming stands / roll stations | 12–25 or more,depending on complexity of the shape. More stands = more gradual bending,better finish. |
Cutting / punching capabilities | Hydraulic punching,pre- or post-holes/slots;sometimes flying shear;precision requirements often tighter than for general structural profile machines. |
High throughput: can produce many brackets continuously.
Consistency: uniform hole positions, shapes, profile dimensions.
Reduced manual labor & cost per piece.
Customizability: shapes, lengths, materials can be varied.
Precision: good control over tolerances, strength, alignment suited for solar applications (which have to survive environmental loads, wind, etc.).
