Main Components of the Production Line
Component | Function |
Decoiler (Uncoiler) | Holds and unwinds the steel coil (manual or hydraulic,3–15 ton capacity) |
Leveling Machine | Flattens the metal strip and removes residual stress |
Servo Feeder | Precisely feeds material into the punching station at controlled intervals |
Punching System | Punches holes,slots,notches,or embosses logos on the panel |
Roll Forming Machine | Gradually shapes the flat strip into the desired profile using multiple roller stations (12–35 stations) |
Cutting Unit | Cuts the formed panel to the required length (hydraulic or servo-driven) |
PLC Control System | Centralized control with HMI touch screen for parameter settings and monitoring |
Run-Out Table / Stacker | Receives and collects finished panels |
Step-by-Step Working Process
The typical workflow of a shelf board roll forming machine follows the sequence illustrated below:
Decoiling → Leveling → Servo Feeding → Punching → Roll Forming → Cutting → Discharging
Step 1: Decoiling (Uncoiling) The steel coil is loaded onto the decoiler using a feeding trolley or overhead crane. The machine unwinds the coil and feeds the leading edge into the leveler .
Step 2: Leveling (Straightening) The metal strip passes through a series of leveling rollers that flatten the material, removing curvature and twist. This ensures dimensional stability for downstream processes .
Step 3: Servo Feeding A servo-driven feeder grips the leveled strip and advances it precisely to the punching station. The servo motor allows for accurate length measurement and positioning .
Step 4: Punching (Pre-Punching or Inline Punching) The material enters a hydraulic or mechanical punching press. Holes, slots, or notches are punched according to the shelf design. This can be done:
Pre-punching: Pause-to-punch before roll forming
Tracking punching: Continuous punching without stopping
The punching mold is typically made of Cr12MoV or Cr12 steel, heat-treated to HRC 58–62 for durability .
Step 5: Roll Forming (Cold Forming)
The punched strip passes through a series of roller stations (typically 12–24 stations). Each station gradually bends the metal until the final profile is achieved. The rollers are precision-machined from GCr15 or Cr12 steel, hardened and chrome-plated for wear resistance .
Forming Speed: 6–22 meters per minute (depending on material thickness and hole pattern)
Width Adjustment: Many modern machines offer automatic width adjustment via electric motors, allowing different panel sizes without manual roller changes

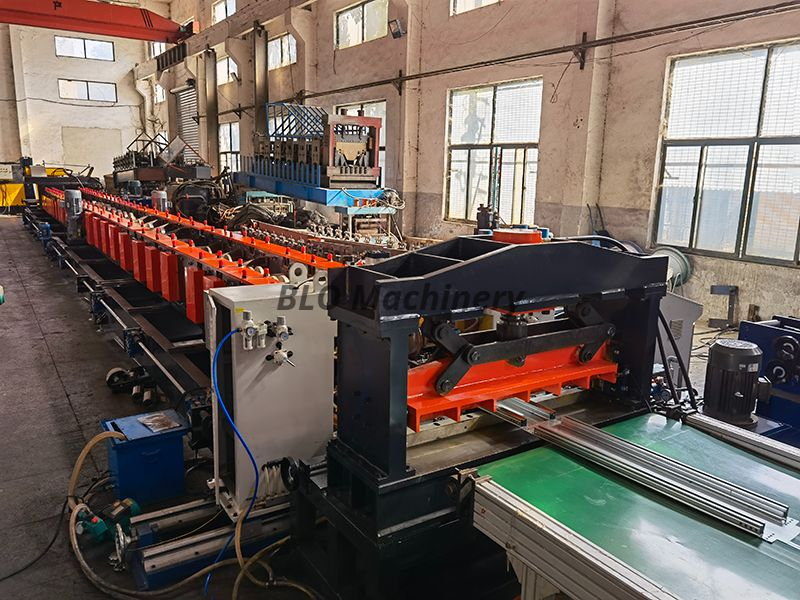

Step 6: Cutting (Cut-to-Length)
Once the formed profile reaches the preset length, the cutting unit activates. Two cutting methods are common:
Hydraulic Cutting (Pause-to-Cut): The line pauses briefly while the blade cuts
Flying/Tracking Cutting: The cutting die moves with the material, allowing non-stop production
Cutting blades are made of hardened Cr12 or SKD11 steel .

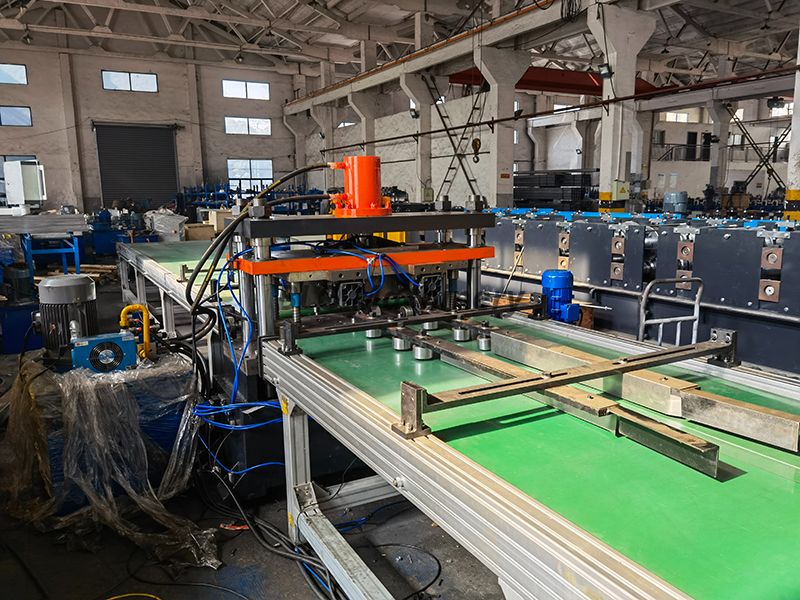

Step 7: Discharging & Stacking

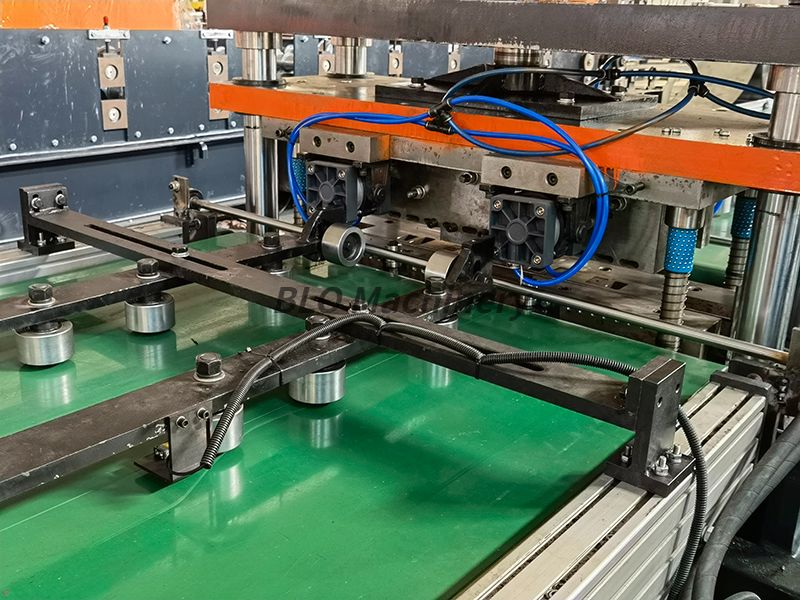

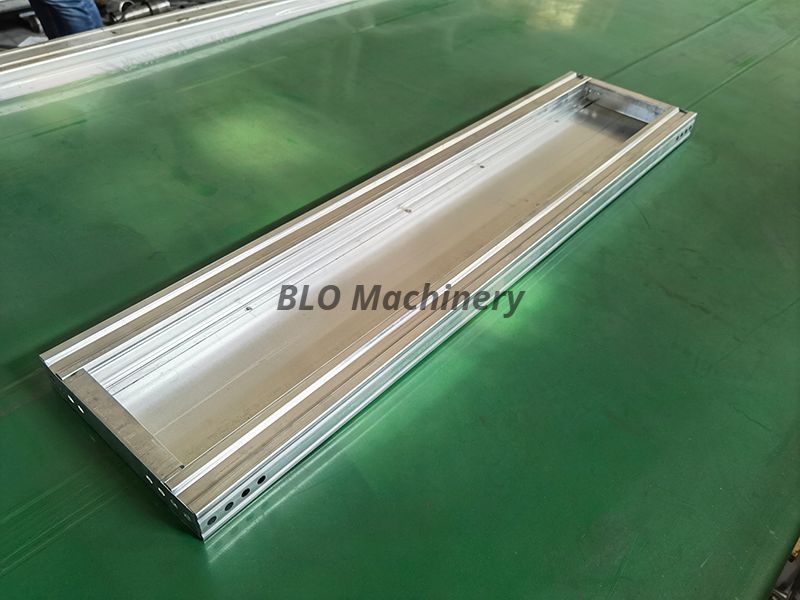

Finished shelf panels are discharged onto a run-out table. Some advanced lines include an automatic stacker that organizes panels for packaging
Applications of Finished Shelf Panels
Supermarket shelving and gondola displays
Warehouse pallet racking systems
Industrial storage and logistics equipment
Home storage and garage shelving units
